Miyanumatic camless automatic turret lathe 11.5" swing

What is for sale: Miyanumatic camless automatic turret lathe 11.5" swing

---

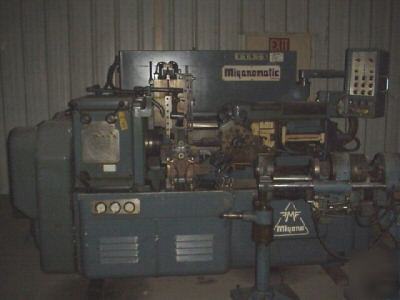

(1) Used MIYANUMATIC Model MTP-4BC-2 Camless Automatic Turret Lathe; S/N #7020305BC-2; Manufactured 1972
Bar Feed (Max)............................................................... 6-5/16"
Type of Nose........................................................ ASA A1-8
Hole through Spindle............................................ 3-1/8"
Spindle-Automatic Changes.................................. 4 Steps
- Total Changes......................................... 16 Steps
Spindle Speeds.................................. 41-1500 RPM
Swing Over Bed.................................................... 11-1/2"
Tool Holes (Diameter)........................................... 1-1/2"
Distance Between Opposite Turret Faces.............. 9-7/8"
Turret Slide Travel (Max)...................................... 9-7/8"
Distance Between Turret Face and Spindle End(Max)...... 31-1/2"
Distance Between Turret Face And Spindle End (Min)..... 11-3/4"
Resetting of Saddle................................................. 9-7/8"
Index Clearance (Max)........................................... 17-3/4"
Longitudinal Feeds (Stepless)................................. 1.78"-11.75"
Rapid Traverse....................................................... 33'
Height from Spindle Center..................................... 3-1/8"
Stroke (Max)........................................................... 4-1/2"
Cross Feeds (Stepless)............................................. 0.78"-11.75"
Rapid Traverse......................................................... 13'
Height from Spindle Center...................................... 2-3/16"
Stroke (Max)............................................................ 9-1/2"
Vertical Feeds (Stepless)........................................... 0.78"-11.75"
Rapid Traverse.......................................................... 13'
Main Drive Motor...................................................... 4 Pole- 15 H.P.
Electrical Characteristics........ 460 V.A.C. 3 Phase/ 60 Cycle
Inside Chucking..................................................... 8-1/2"
Outside Chucking.................................................. 6"
Round.................................................................... 2-1/2"
Hexagon................................................................. 2-3/16"
Square.................................................................... 1-3/4"
Overall Dimensions: 11' L-R x 9' F-B x 6.5' High
Weight: 16,500 Lbs. (Estimated)
F.O.B..................................................Arizona
