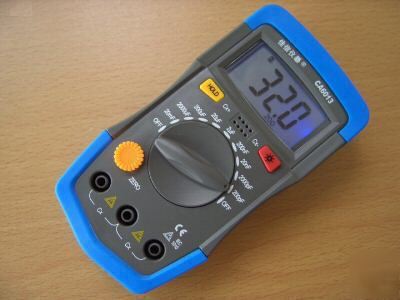

Digital 20MF capacitance meter,tester,lab,design,diy

What is for sale: Digital 20MF capacitance meter,tester,lab,design,diy

---

Lab Research, Manufacturing, Experiment, Home / DIY Hobbies "
HIGH ACCURACY, RESOLUTION & RELIABILITY !!!
. Wide Selectable Measuring Range : 0.1pF to 20,000uF
. Better for the following applications :
- Capacitor characteristic analysis;
- Selection of desired capacitor;
- Test Unknown capacitor / capacitance ;
- Finding the "matched" capacitors for circuit design
. High Accuracy and resolution for precise measurments
. Low power consumption & low battery indication
. Protective case to reduce the drop damage
. 9 Measuring Ranges : 0.1pF to 20,000uF
Range 2 to 7 : 2nF / 20nF / 200nF / 2uF / 20uF / 200uF , +/-0.5% ;
. CMOS Dual slope Integration technology, auto turns zero & polarity selection, overflow display functions.
. Max Display : "1999", 3 1/2 Digits
. Sampling rate : 2 -3 times per second
. Zero adjustment before measurement : Manual
. Power : 9V DC battery ( 6F22 )
. Low battery indication on display
. Working condition : 0 - 40C , < 85% RH
. Size : 143 x 75 x 32mm ( Includes protection case )
. Weight : Approx. 200g ( Included battery )
. Accessories : test leads and protection case
QUANTITY DISCOUNT AVAILABLE !!!
If the item damaged upon received, please inform immediately with picture by e-mail within 5 days. After the investigation, we decide to the replacement.
The color of the protection case may vary which subjects to the availability.
- Regret not accept Personal Check; US local Postal Order.
Don’t hesitate to ask if you have any inquiry.
