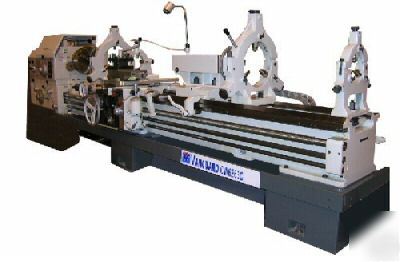

New 24"/31"X120" vanguard gap bed engine lathe, (20023)

What is for sale: New 24"/31"X120" vanguard gap bed engine lathe, (20023)

---

24"/31" x 120" cc, VANGUARD, Gap, 7.5-800 RPM, Inch/mm, Taper, DRO, Chucks, New Our stock number: 20023 Vanguard CA Series Gap Bed Engine Lathe
CW 6263C-3000 24 x 120 Heavy Duty
Vanguard CW series Heavy Duty engine lathes are constructed of high quality
Meehanite castings through out. All bedways are induction hardened and
precision ground on CNC way grinding machines. The spindles are forged steel
and are supported by precision NSK bearings. The Headstock features hardened
and ground steel gears lubricated by an automatic force lubrication system.
The gear box is totally enclosed, and is lubricated by an automatic forced
The Vanguard CW series engine lathes are engineered and manufactured for
precision and maximum performance with standard features normally found as
options on higher priced machines.
Taper Attachment 3-Jaw Manual Chuck
4-Way Rapid Traverse Roller Steady Rests
Siemens/ Allen Bradley Electrics Chip Pans
Distance Between Centers: 118.11
Diametral Pitch Threads (24): 1-28 D.P.
L. x W. x H.: 204.3" x 54.3" x 57.1"
Roller Steady Rest 7" Capacity
2ea Roller Steady Rest 16.5" Capacity
2-Axis digital Read-out Installed
Vanguard Machinery International, LLC
Vanguard Machinery International, LLC (VMI,LLC) warrants to the original
purchaser other than a purchaser for resale. (the Purchaser) that
for a period of one (1) year from the completion of installation, or for a
VMI,LLC will, at its sole and exclusive discretion, either replace or repair
All warranty repairs must either be performed by or authorized by a VMI,LLC
Authorized Service Organization to obtain warranty service. Purchaser must
contact their local VMI,LLC Authorized Service Organization. Purchaser must
provide verification of the date of delivery/installation when requesting
regular or common carrier truck) for all warranty replacement parts are paid
by VMI,LLC. If machine is not operational, VMI,LLC will pay next-day air
parts alleged to be defective shall be returned to VMI,LLC at VMI,LLC's
request, transportation charges prepaid. After the warranty repair or
replacement of a defective part, VMI,LLC's warranty for such part shall
continue for ninety (90) days or for the remainder of the original Limited
This warranty shall remain in effect only if the machine is used and
maintained in accordance with all operating and maintenance instructions set
forth in the manuals and instruction sheets furnished by VMI,LLC. VMI,LLC
shall have no liability to repair or replace defective parts until the
repairs or alterations made without VMI,LLC's written consent or approval. The
limited warranty provided by VMI,LLC excludes the following.
1. Damage, malfunction, or failure caused by or resulting from improper
maintenance, misuse, neglect, accident, or any other cause beyond the control
2. Damage. malfunction, or failure caused by modification of the machine
(mechanical or electrical) without written authorization by VMI,LLC.
3. Damage. malfunction, or failure caused by installation or use of
accessories or peripherals not purchased through or authorized in writing by
4. Paint, batteries, filters, fluids, fuses, light bulbs, or any common
5.Damage to machines and/or components while being transported from VMI, LLC
warehouse or facility to destination.
6. Accessories or peripheral not manufactured by VMI,LLC which
shall be subject only to whatever warranty that is supplied by the
7. CNC control, spindle and servo motors, spindle and servo drives. Which are
covered by a two (2) year manufacturer warranty.
No person, agent, distributor, dealer or company is authorized to change,
makes no warranties, guarantees or representations, express or implied with
respect to the machine tool, or parts thereof, except to the extent such
warranty is set forth here. The equipment covered does not necessarily comply
with any codes or standards unless specifically quoted, ordered, and so
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**Skids shown in pictures are not included with the item. **
**All items requiring a skid will have an additional skidding fee added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge.**
