12" OD GRINDER, Cincinnati DE SWING DOWN I.D.
12" OD GRINDER, Cincinnati DE SWING DOWN I.D.

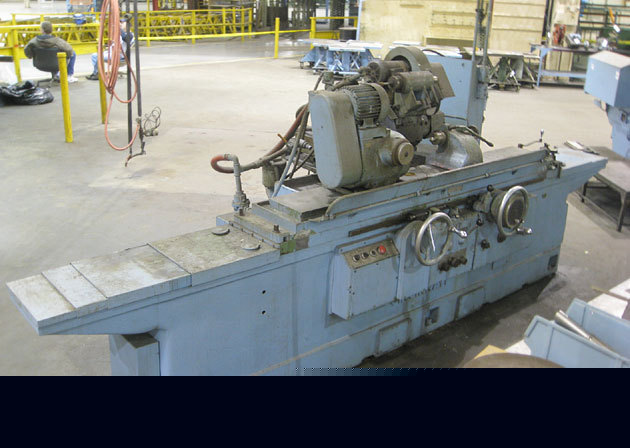

12" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
W/SWING DOWN I.D. GRINDING ATTACHMENT W/SPINDLE
MODEL: DE S/N: 35323E-5V-0001 NEW: 1968
SWING OVER TABLE ............................ 12-15/16"
DISTANCE BETWEEN CENTERS .......................... 48"
TABLE SWIVEL, TOWARD WHEELHEAD .............. 9 DEGREES
AWAY FROM WHEELHEAD ........... 2 DEGREES
LOWER SWIVEL LEFT & RIGHT OF CENTER ............ 90 DEG.
UPPER SWIVEL, RIGHT & LEFT ..................... 30 DEG.
MOTOR .......................................... 5 HP
GRINDING WHEEL SIZE ....... 14" WHEEL DIA. X 1-1/2" X 5"
INF. VARIABLE TABLE SPEEDS ............. 3" TO 220" IPM
HAND TABLE TRAVERSE PRE REVOLUTION OF HANDWHEEL
(RAPID/SLOW) ............................ 15/16" / 0.2"
AUTOMATIC INFEED AT TABLE REVERSAL:
LOW ................................. 0.0002" TO .0005"
HIGH ................................. .0005" TO .0125"
WHEELHEAD MOVEMENT PER TURN OF HANDWHEEL:
LOW ............................................ 0.050"
HIGH ........................................... 0.250"
MINIMUM INFEED ON DIAMETER ................... 0.00005"
MOTOR .......................................... 1 H.P.
TAPER HOLE IN SPINDLES ........................ #9 B&S
INF. VARIABLE WORKHEAD SPEEDS .......... 50 T0 500 RPM
SPINDLE NOSE, AMERICAN STANDARD ................... 5"
HEADSTOCK SWIVEL, TOWARD WHEELHEAD ............ 90 DEG.
AWAY FROM WHEELHEAD ....... 30 DEG.
FLOOR SPACE FOR OPERATION:....................72" X 185"
APPROX. DIMENSIONS:............ 166" L-R, 72" F-B, 66" H
APPROX. MACHINE WEIGHT ...................... 12,800 LBS
FULL HYDRAULIC OPERATION FEATURING:
SWING DOWN I.D. ATTACHMENT W/SPINDLE
MACHINE WILL ACCEPT AN 14" WHEEL
INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
WORKHEAD SPINDLE IS BOTH LIVE & DEAD
ELECTRICAL CABINET MOUNTED ON MACHINE, NOT SEPERATE
DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT
WORKHEAD & TAILSTOCK EACH HAVE A CENTER
5 H.P./3/60/230-460 VOLT SPINDLE MOTOR
** EXCELLENT CONDITION & APPEARANCE **
Machine Location: HARRISON, NJ
