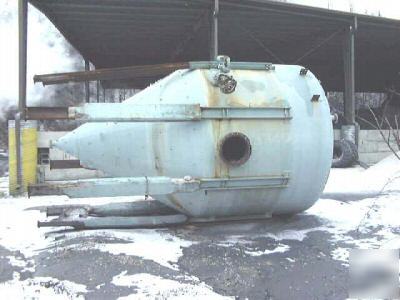

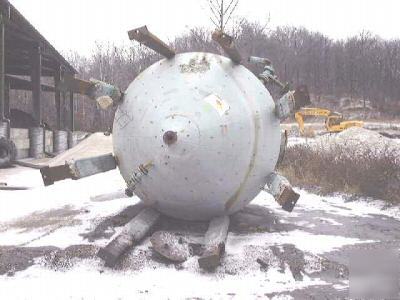

Used: 1160 cubic foot carbon steel storage bin (1462)

What is for sale: Used: 1160 cubic foot carbon steel storage bin (1462)

---

WITH LEGS GIVING 12” CLEARANCE UNDER HOPPER
TANK IS 11’-0” DIAMETER X 9’ – 4” STRAIGHT SIDE
60° CONE OF APROX. 9’ – 6” IN HEIGHT
OVERALL HEIGHT IS APPROX. 18’ – 11”
TANK HAS 8, I-BEAM LEGS FOR MOUNTING
TOP OF TANK HAS A ONE 3”, TWO 2”; ONE 1.5” FLANGED NOZZLES
SIDEWALLS HAVE SEVERAL NOZZLES 1.5” THRU 4” AND A SIDE MANWAY 20”
SHELL THICKNESS IS 5/16” THICK
WORKING PRESSURE IS 42 PSI @ 450° F
CHECK OUR WEB SITE FOR ADDITIONAL BIN LISTINGS
