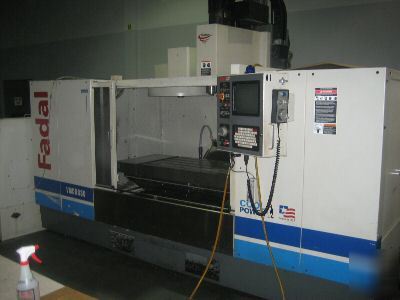

Fadal 6030 cnc vertical machining center, 2000, vmc

What is for sale: Fadal 6030 cnc vertical machining center, 2000, vmc

---

(***)-783-2218 (***)-401-3572 cell (***)-783-5800 fax
* FLOOR TO TABLE SURFACE: 32"

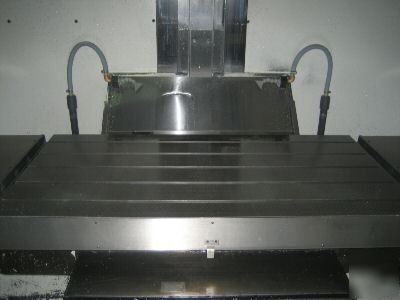

* T-SLOTS (NO. X WIDTH X SPAN): 5 X .687" X 3.75"
* CUTTING FEED RATE (X/Y/Z): .01-400 IPM (600" @ 150%)
* RAPID FEED RATE (X/Y/Z): 700 IPM (X/Y/Z)
* MAX. WEIGHT ON TABLE: 3641 LBS.
* AXIS DRIVE MOTOR (X/Y/Z): AC 3800 LBS (PEAK) THRUST
* BALL SCREW SIZE: 1.58" DIA. (X/Y/Z)
* LONGITUDINAL (X AXIS): 40"
* SPINDLE NOSE TO TABLE: 4"-24"
* SPINDLE CENTER TO COLUMN WAYS: 20"
* SPINDLE SPEEDS: 10-10,000 RPM
* SPINDLE ORIENTATION: ELECTROMECHANICAL
* ATC, TOOL SELECTION: RANDOM/BI-DIRECTIONAL
* (WITHOUT ADJACENT TOOLS): 6"
* MACHINE WIDTH X DEPTH: 116"W X 87"D
* MACHINE WEIGHT: 17,500 LBS
* AIR PRESSURE REQUIREMENT (MOMENTARY): 80 PSI, 15 SCFM
* POWER REQUIREMENT (3 PH): 40/45 AMPS
* ELECTRICS: Multi Tap Transformer 208 - 480 VOLTS, 3 PH, 60 CYCLE

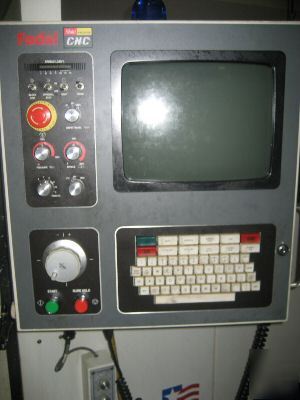

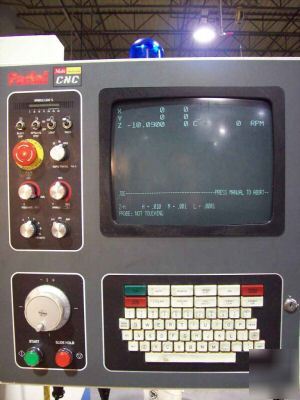

* FADAL MULTI CNC CONTROL WITH GRAPHICS, HIGH SPEED CPU, EXTENDED MEMORY

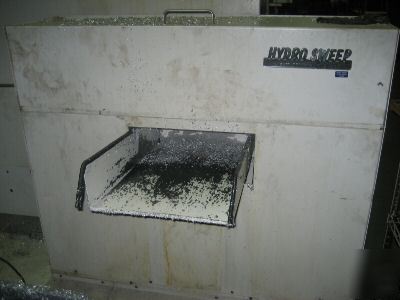

* HYDRO SWEEP CHIP AND COOLANT SYSTEM
* 30 ATC SERVO DRIVEN TURRET
* VERY HIGH TORQUE SPINDLE OPTION
* AC SERVO DRIVES IN ALL AXIS
Only cut Aluminum. Very good shape.
This machine includes our 30 day return privilege and startup guarantee.
