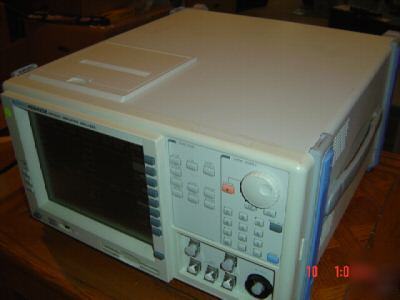

Ando edfa optical amplifier analyzer model AQ8423Z oaa

What is for sale: Ando edfa optical amplifier analyzer model AQ8423Z oaa

---

Ando’s AQ8423Z optical amplifier analyzer employs a new optical technique the pulse method for easy, accurate evaluation of optical fiber amplifiers. This measurement system is able to provide accurate measurements even when the input level of the optical amplifier signal is high, a challenging task with conventional measurement systems. Some of the features are:
Employs optical pulse-method for the optical method
High-performance DFB-LD light source can be built in
Optical amplifier input level exceeds +3 dBm (2mW)
Enables NF measurement by measuring the beat noise between optical fiber amplifier signal power and ASE power
High-accuracy gain and NF measurements
Simple configuration and operation provides substantial savings in time and cost for both R&D and production line applications
Simple operation: Complete measurements with one touch
Superior visibility: 9.4-inch color LCD
Data logging: 3.5-inch FDD (1.2/144 MB), internal memory, internal printer
Calibration function: Internal self calibrating function
Video output: VGA compatible output
* Excellent Working condition
