#9858 - ystad kmd 5-axis cnc folding & bending machine

What is for sale: #9858 - ystad kmd 5-axis cnc folding & bending machine

---

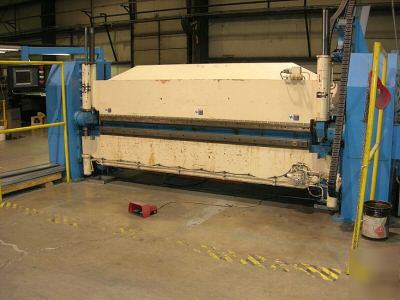

10 GA. X 10' YSTAD MODEL KMD 5-AXIS CNC HYDRAULIC UNIVERSAL FOLDING AND BENDING MACHINE
Daylight of clamping beam open (without tool) 24"
Shut height with tools mounted 0
Max. clamping beam force 35 Tons
Max. speed of clamping beam up 180"/Min.
Max. speed of clamping beam down 180"/Min.
Angle adjustment for upper and lower beam 0 - 135 deg.
Speed of folding beam complete cycle from 0-90 deg. bend lower 4 Sec.
Speed of folding beam complete cycle from 0 - 90 deg. bend
Up/Down adjustment of bending beam (lower) 4"
Up/Down adjustment of bending beam (upper) 16"
Weight of machine without back gauge 21,600 lbs.
1-Axis fully interfaced back gauge with pneumatic flip-up stops
2 Manually adjustable crowning attachments
