Ball plug pin gages, go-no go w/handles & collets

What is for sale: Ball plug pin gages, go-no go w/handles & collets

---

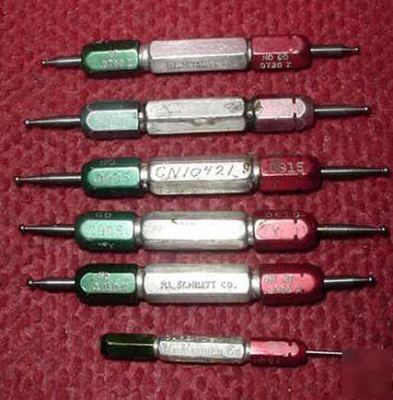

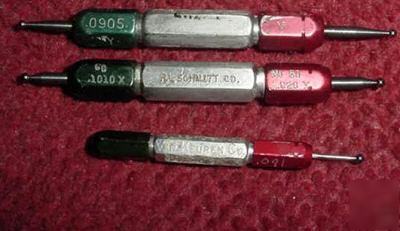

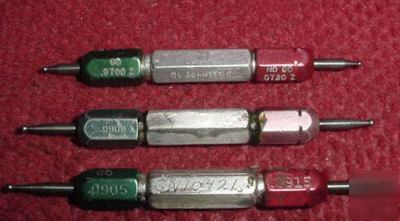

This is a Lot of (6 ) Ball Plug Gages with Handles.
* (5 ) Go-No Go Gages mounted on a common handle (1) .070-.073" / (1) .090-.091" / (2).0905-.0915" / (1) .101-.102" all with 1/8 shafts and Handles
* (1) Single End Ball Gage .091" & with .042" Shaft & Handle
* Use to measure inside diameters / space between two surfaces / width of grooves
* The Ball Plug Gage has a unique advantage over conventional inspection methods. Its spherical shape provides a self-centering line of contact that can be inserted into a hole at any angle. The ball will not stick or bind, allowing it to be used to measure bell mouth and taper.
* Excellent for use in confined areas even when the actual hole or groove being measured cannot be seen by the inspector.
* A feature buried down in a hole or inside a cavity can often be measured by putting a bend in the stem of the Ball Plug Gage..
* Makes a radius gage of unparalleled accuracy. By applying a thin coat of oil-base Prussian Blue to the Ball Plug Gage, it becomes a very effective method for checking spherical and toroidal surfaces. When the blued ball gage is brought into contact with the test part, it will leave a telltale blue mark at the points of contact
* Also widely used to measure the pitch diameter of bearing races, threaded surfaces and of gears, location of holes, internal and external grooves and various machined details are other common uses for the Ball Plug Gage.
* Tool Steel 60-62 Rc Hardness
Any questions e-mail or call Gerry @ (***)-547-0616. Please include item number in all correspondence.
No charge for packing, skidding or loading.
