Amspray / wagner piston valve and foot valve old style


What is for sale: Amspray / wagner piston valve and foot valve old style

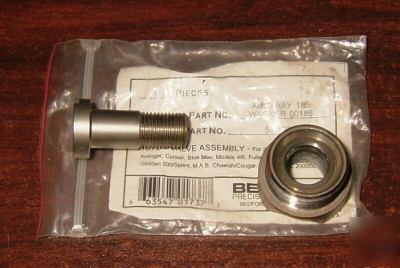

These are two critical parts for older style Amspray, Glidden, Fuller Obrien, and Wagner paint sprayers. One is the piston valve, #186 and the other is a foot valve, #205. These are for the 296 and 396 fluid sections. Those are the original style fluid sections for: Model 4, Model 6, Avenger, Corsair, Blue Max, Chief, Warrior, Glidden 500, Sprint, M.A.B. Cheetah, Cougar, Sinclair SPC 2000 / 3000.
The fluid section on these are characterized by a round foot valve with two flats. The fluid section body is flush where the foot valve screws in....Later types have an overlaping, larger OD, foot valve. And the piston valve (on the end of the piston rod), is round with a large slot through the center.
While is may be obvious that your machine needs to be repacked, worn valves are less obvious. But... if worn badly, your sprayer will not stop pumping. It will leak through the valves and never build pressure. Lighty worn vavles can cause your sprayer to loose efficiency and work harder than it should. Retail cost is $175. for the pair.
Hope these can get you up and running! Thansk for looking!!

Contact: Walter-Jenkins@parts-recycling.com (Walter Jenkins) (email hidden).
