Microchip PIC16C56RC/so 8 bit cmos microcontroller nos

What is for sale: Microchip PIC16C56RC/so 8 bit cmos microcontroller nos

---

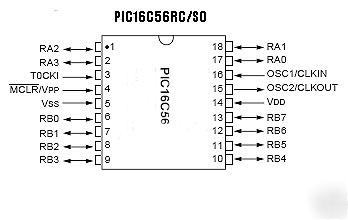

MICROCHIP PIC16C56RC/S0 0.300" SOIC SMT
THIS PART IS PROGRAMMABLE AS A LP/RC/XT/HS DEVICE!
OPERATES @ 20MHz WHEN 'HS' CONFIGURATION IS PICKED!
SAME MICRO USED IN THE LCD SERIALIZER BY TOM COONAN!
INCLUDES 1EA 20.0MHz CRYSTAL OR 1EA 4.00MHz CRYSTAL!
SELL 1-200 PIC16C56RC/SO'S INDIVIDUALY!
Image Hosted by DEDAKI http://
WE'RE ALSO INCLUDING FREE OF CHARGE A 20MHz SMT MOUNT HC-49US CRYSTAL OR A 4MHz THRU HOLE CRYSTAL SO AGAIN YOU
WILL NOT HAVE TO GO OUT TO FIND ONE & THEN HAVE TO PAY ANOTHER S&H CHARGE. SO FOR EVERY PURCHASE THAT YOU MAKE
YOU WILL GET 1 PIC16C56RC/SO MICROCONTROLLER & EITHER A 20.0MHz CRYSTAL OR A 4.0MHz CRYSTAL TO CLOCK YOUR MICRO.
DESIGNS THEMSELVES THAT USE THIS MICRO ARE UP TO YOU, WE JUST SUPPLY THE SILICON & QUARTZ.
EACH PURCHASE INCLUDES THE FOLLOWING, 1EA NOS. PIC16C56RC/SO MICRO IN A 0.300" SOIC SMT PKG. 1EA 20MHz SMT MOUNT
HC-49U CRYSTAL OR A 4MHz THRU HOLE HC-49U CRYSTAL. THEY ARE FOR CLOCKING THE MPU DEPENDING ON THE NEEDED FREQ.
(YOU CAN REMOVE THE PAD UNDER THE SMT CRYSTAL, THEN BEND THE 2 LEGS STRAIGHT & THEN USE IT AS A THRU HOLE PART.)
A DATASHEET IS AVAILABLE ON THE INTERNET AT MNF'S WEBSITE'S OR CAN BE DOWNLOADED BELOW USING OUR LINK!
NOTE: PLEASE MAKE SURE YOUR PROGRAMMER IS ABLE TO PROGRAM THE MICRO'S OSCILLATOR CONFIG BIT AS SOME CHEAP
MODELS WERE NOT ABLE TO DO SUCH, ALSO REMEMBER THAT YOU DO NOT HAVE TO PROGRAM IT AS A 'HS' OSCILLATOR IF ALL
YOU NEED IS 4MHz, THAT IS A 'XT' OSCILLATOR. ANYWAY THESE TYPES WERE THE BEST AS THEY COULD BE PROGRAMMED TO BE
ANY OF THE 4 TYPES MICROCHIP MNF'D, THUS IF YOU RAN INTO A DESIGN THAT RAN AT 4MHz YOU WOULD NOT BE STUCK WITH A
MICRO THAT ONLY DID 8-20MHz. HENCE THESE ARE MPU'S WORTH EVERY PENNY WE ARE CHARGING FOR THEM!
THANKS FOR LOOKING AND GOOD LUCK!
