New all mill digital readout system - dro

What is for sale: New all mill digital readout system - dro

---

Linear Measuring Systems Company offers the following:
**NEW** Newall C80 digital readout system
This system list price is $1445.00.
This system can be retrofitted on a Bridgeport Series I machines or the import copies,
The brackets could be modified to work on other machines.
The complete system includes the following:
A operations manual, 2 axis display,2 linear scales and mounting hardware.
The scale resolution is 5um/.0002" or 10um / 0.0005"
System comes with a 3/5 year Mfg. warranty.
Absolute/Incremental Operation Inch/Metric Conversion
Zero Approach Warning Zero Reset/Data Preset
Radius/Diameter Readings Center Find
Home Reference Linear Error Compensation
Segmented Error Compensation Memory Back-up
Self Diagnostics Encoder Failure Alert
Switchable Resolutions by Axis Sleep Mode
Feed Rate Display Bolt Hole Circle Routine
Arc Contouring Programmable Memory (99)
Polar Coordinate Readings Line Hole Calculator
Tool Offsets (99) Taper Calculations
Axis Vectoring/Summing (3axis) Software Upgradeable via the internet
Keypad: Membrane Chassis: Die Cast
Encoder Input:• Spherosyn™ / Microsyn™
Dimensions: 10.4" x 7" x 2" (264 x 178 x 51mm)
Weight: 6.3 lbs. (2.9Kg) Voltage: 115-230V
We do not carry any of the following Newall models:
A50, C70, DP7, DP8, DPG200, SA100, Topaz and Sapphire.
Please choose from the following systems:
Package Number: C802000/1228KM 12" x 28" Travel
Package Number: C802000/1232KM 12" x 32" Travel
Package Number: C802000/1634KM 16" x 34" Travel
Scales can travel 2" more than the above stated travels.
Overall Scale Length: scale length + 10"
Signal cable Length: 11.5' (3.5M)
Package Number: C802000/1 12" x 24" Travel
Package Number: C802000/2 12" x 30" Travel
Package Number: C802000/3 12" x 36" Travel
Package Number: C802000/4 16" x 30" Travel
Package Number: C802000/5 16" x 36" Travel
Package Number: C802000/6 14" x 40" Travel

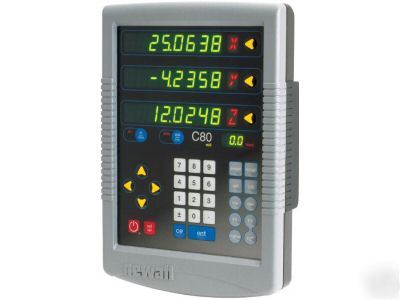

I know the picture shows a three axis system but that is what Newall supplies to the public.
If you don't like it or understand it, give Newall a call and tell them to change it, don't call or e-mail me.
I already know it shows a three axis display.
The brackets supplied are UNIVERSAL brackets.
I don't stock these systems in my office. My supplier stocks these systems in their office in South El Monte Ca.
4) Company Checks (require 5 - 7 days to clear).
All California residents will pay 7.75% tax on your purchase unless you have a resale number.
No trades for other product or services
Property is sold "New". Seller "Warranties property and condition is as described".
For further information about Linear Measuring Systems, you can see us at
or call (***)-376-4373 / (***)-222-6110
