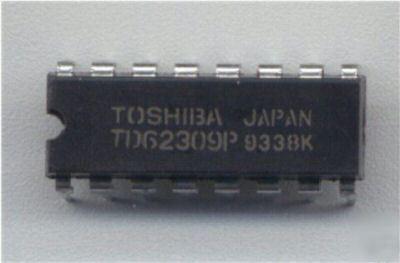

62309 / TD62309P / TD62309 / toshbia driver

What is for sale: 62309 / TD62309P / TD62309 / toshbia driver

---

Toshiba Bipolar Digital Integrated Circuit Silicon Monolithic
6CH Low Saturation High-Current Sink Driver
The TD62309P is comprised of six NPN low saturation drivers. All units feature integral clamp diodes for switching inductive loads. These devices are specifically designed for relay, lamp and LED drive in low voltage systems.
Low saturation output : VCE (sat) = 0.8V (max) @! Out = 450ma
* Output rating (single output) 20V (Min) / 700ma (max) Output clamp dioes
* Inputs compatible with TTL and 3~6V CMOS
