Cleaning polishing buffing sanding machine polisher

What is for sale: Cleaning polishing buffing sanding machine polisher

---

Cleaning / Buffing / Polishing System for Furniture Components
* Automatic Height and Size Adjustment
* Consistent Wearing Down of Brushes

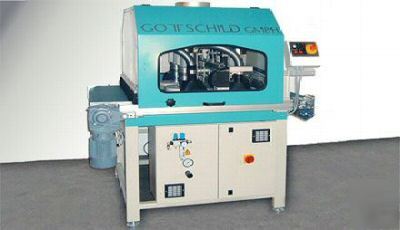

The BSD 1500 is a cleaning, sanding or polishing machine of the Gottschild-System for furniture front panels.
The four- or eight-head rotating brush system removes the glue overspray from spray from the back of the furniture front panels, achieving an optimum texture of
edges at the same time. Remaining loose glue residues are removed by a spiral brush.
This result is achieved because the disk brushes are put on the back of the front panels with pneumatically controlled pressure and clean them
the machine is the perfect buffing system for small and medium productions.
The BSD 1500 has been equipped with an automatic recognition of size and thickness of the furniture front panels, enabling an adaptation in thecase of chaotic loading without loosing time in through-feed operation.
Due to the flexible control system there is the possibility of buffing of rectangular and contour parts.
The low-maintenance brushes are very durable, ensuring low production costs.
As an option the BSD 1500-P also can be used for polishing or finishing sanding / grinding furniture fronts. To this other option engines and 150 mm Ø buffers or sanding pad are needed.
* Four-head rotating brushing system
* Modem for remote maintenance
* Spiral brush removes loose glue residues
* Angled infeed roller conveyor with component staggering
* Transport system with lay-up belt and angle transfer
* Run-out accumulation roller conveyor with buffer function
* Ionizing for electrostatic surface cleaning
Options: Spiral brush with ionizing for electrostatic surface cleaning
* Air-ionizational brush and extraction: .The surface cleaning unit eliminates disturbing dust and loose glue residues from the back of the furniture front components.
* Ionizing Bar: The ionization bar on the intake side discharges the electrostatically charged and contaminated surface, while the ionization bar at the outlet side neutralizes charges on the surface and on the brush during and after the cleaning process.
* Brush: The spiral brush grabs the electrostatically discharged particles and sends them in the direction of the extraction hood
* Jet nozzles: The flat jet nozzles are supporting the transportation of the ions with an aligned flat air stream, which removes smallest particles from the surface and keeps the spiral brush dust-free.
Machine Type and Production Capacities
