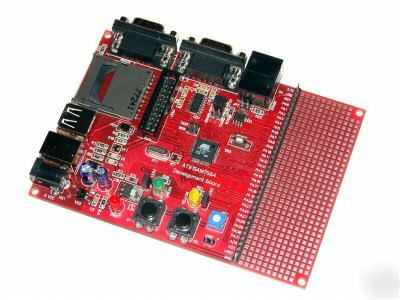

AT91SAM7S64 ARM development board
(also available versions with AT91SAM7S128 and AT91SAM7S256 controllers - see items in my store)
Debugging board for microcontrollers AT91SAM7S64/128/256/512 ARM7TDMI-S - the universal board enabling easily and quickly to start to work with ATMEL ARM microcontrollers.
The board allows the developer to load the user's program through port RS-232, to connect the external JTAG-emulator. On the card components necessary for quick start are installed all and possibility to increase the circuit due to mockup area is stipulated.
The board represents the improved version of known board SAM7S-P64 of Olimex corporation - USB-A plug (there was a possibility of implementation USB Flash DISK interface) and RS485 the interface is added. Thus the circuitry that enables easily is saved to apply already created code without what or corrections
Fully compatible with WIGGLER ARM JTAG
* MCU: AT91SAM7S64 16/32 bit ARM7TDMIâ„¢ with 64K Bytes Program Flash, 16K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
* standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
* USB-A and USB-B connectors
* Two channel RS232 interface and drivers
* One RS485 interface and driver
* thermistor connected to ADC
* on board voltage regulator 3.3V with up to 800mA current
* single power supply: 6V AC or DC required
* power supply filtering capacitor
* extension headers for all uC ports
* PCB: FR-4, 1.5 mm, soldermask, silkscreen component print
* Additional prototype area: 90x30mm
Potentiometer connected to ADC with VREF jumper
For view large picture click here
For download documentation click here ARM_AT91SAM7S.zip
* Blinking LED project and Binary code for SAM-BA load
* Sample mouse driver with AT91SAM7P64 project
* SD/MMC read/write routines project
* button read, temperature measurement project
