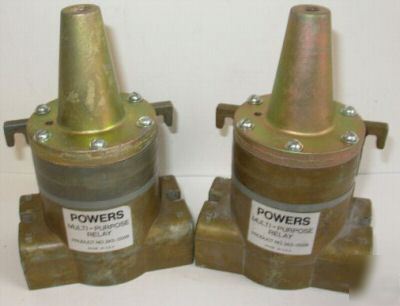

Powers multi-purpose relay model: 243-0009 {lot of 2}

What is for sale: Powers multi-purpose relay model: 243-0009 {lot of 2}

---

Ambient Temperature Range Operational ..........40 to 120°F (4 to 49°C)
Storage ......................................................-20 to +120°F (-29 to +49°C)
Hysteresis ....................................................................0.25 psig (1.7 kPa)
Relief Valve Differential ................................................1.0 psig (6.9 kPa)
Air Capacity ..............................................................400 scim (109 ml/s)
Air Consumption (max.) ....................................................7 scim (2 ml/s)
Spring Range ...................................................0 to 25 psig (0 to 172 kPa
Air Connections ...........................................................................1/8" NPT
Spring Adjustment Range .........................................25 psi (0 to 172 kPa)
Supply Air Normal ..........................................................25 psi (172 kPa)
Maximum .......................................................................30 psi (207 kPa)
