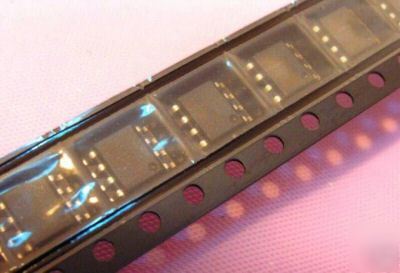

OPA657 opamp 1.6GHZ low noise, fet input, precision (4)

What is for sale: OPA657 opamp 1.6GHZ low noise, fet input, precision (4)

---

Low Distortion, Low Noise OpAmp
Very low level signals can be significantly amplified in a single OPA657 gain stage with exceptional bandwidth and accuracy. Having a high 1.6GHz gain bandwidth product will give > 10MHz signal bandwidths up to gains of 160V/V (44dB). The very low input bias current and capacitance will support this performance even for relatively high source impedances.
Broadband photodetector applications will benefit from the low voltage noise JFET inputs for the OPA657. The JFET input contributes virtually no current noise while for broadband applications, a low voltage noise is also required. The low 4.8nV/rtHz\ input voltage noise will provide exceptional input sensitivity for higher bandwidth applications. The example in the datasheet will give a total equivalent input noise current of 1.8pA/rtHz\ over a 10MHz bandwidth.
* HIGH GAIN BANDWIDTH PRODUCT: 1.6GHz
* HIGH BANDWIDTH 275MHz (G = +10)
* LOW INPUT OFFSET VOLTAGE: ±0.25mV
* LOW INPUT BIAS CURRENT: 2pA
* LOW INPUT VOLTAGE NOISE: 4.8nV/rtHz\
US: $3.75 Canada: $4.50 International: $5.50 Lowest cost option.
2-nd item: S&H 75% less than first (or 25% of first)
item nr 3-5: S&H 80% less than first (or 20% of first)
item nr 6-10: S&H 90% less than first (or 10% of first)
