Cooper atkins MFM300 multi-function expandable test ins

What is for sale: Cooper atkins MFM300 multi-function expandable test ins

---

Cooper Atkins MFM300 Multi-Function Expandable Test Ins
Cooper Atkins MFM300 Multi-Function Expandable Test Instruments
Superheat / Subcooling Computer. This highly accurate instrument measures Temperature, Temperature Differential, Humidity, Dry-bulb, Pressure, Superheat, Sub-cooling and more! The memory is loaded with 15 different refrigerant charts and has the capacity to add new and different refrigerants at a later date. Displays Min, Max and Average values. As shown, the standard unit includes one each model 1075 & 4011 temperature probe. Choose the 500 or 1000 PSI rated pressure probe in order to directly read super-heat and sub-cooling. (Pressure may also be entered by user to calculate Superheat or Sub-cooling) To measure super-heat, just attach the temperature probe to the system suction line near the compressor, then attach the pressure transducer to the system access port near the low side of the compressor. Sub-cooling is measured in the same way, except the temperature probe is attached to the liquid line, and the pressure probe is attached to the high side access port. The MFM300 will determine if the reading is super-heat or sub-cooling and will display the appropriate label. RH Probe and Pressure Probes may be added as needed - See the options below.
Temperature Measurement Range: -58 to 302F
Temperature Display Resolution: 0.1 degree
Relative Humidity Measurement Range: 0 to 99%RH
Relative Humidity Display Resolution: 1% RH
Dry-bulb Temperature Measurement Range: -40 to 185 F
Dry-bulb Display Resolution: 0.1 degree
0 to 500 PSI accuracy: +/- 1% Full-Scale
0 to 1000 PSI accuracy: +/- 1% Full-Scale
Ambient Operating: 32 to 120 F, 10 to 90 % RH, non-condensing
Power source: (4) AA alkaline batteries
Battery life: 100 hours minimum

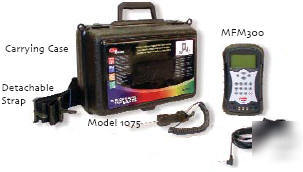

MFM300 - Multi-Function Expandable Instrument
Heavy Duty Carrying Case with detachable shoulder strap
