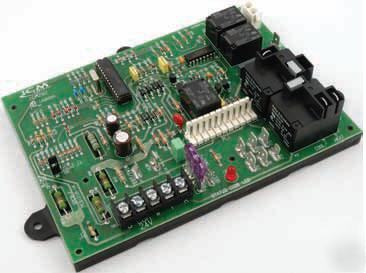

ICM282 furnace control board repl. carrier 325878-751

What is for sale: ICM282 furnace control board repl. carrier 325878-751

---

(ICM-282, ICM 282, ICM282C, ICM-282C, ICM 282C)
HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016
* Low cost, direct replacement for Carrier HK42FZ004/007/008/009/011/013/016
* Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
* Designed for 100% gas shutoff in case of ignition failure
* Twinning compatible with another ICM282 board
* Reverse polarity protection
* Secondary brownout voltage protection
* Compatible with 24 VAC standard thermostat
* Diagnostic fault codes (blinking LED) to aid in troubleshooting
Humidity: 5% to 95% R.H. (non-condensing) @ +55ºF
Voltage Range: Line (98 to 132 VAC) @ 60Hz
Cool Blower: 10A, 2 HP, 240 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Heat Blower Off: 90, 120, 150, and 180 seconds
Cool Off: 90 seconds with jumper JW2 uncut; 5 seconds with jumper JW2 cut
See Fault Code Label (link below)
