Anritsu MS4661 network analyzer 100KHZ-3GHZ

What is for sale: Anritsu MS4661 network analyzer 100KHZ-3GHZ

---

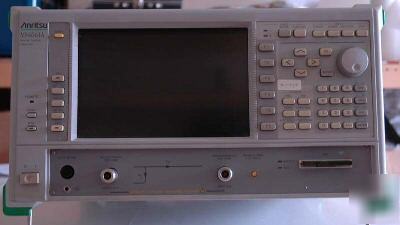

Anritsu MS4661A Network Analyzer
Anritsu MS4661A 100kHz-3GHz, color LCD, built-in bridge,
The Anritsu MS4661A network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
Anritsu MS4661A network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Anritsu MS4661A network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Anritsu MS4661A can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.
Performance Characteristics of the MS4661A
Programmability/Connectivity of the MS4661A
Condition: Used, Excellent Working Condition.
Warranty: Against DOA. 7 days ROR.
Our 7 days guarantee against DEAD ON ARRIVAL does not guarantee for compatibility.
