Generac guardian 18 kw air cooled generator

What is for sale: Generac guardian 18 kw air cooled generator

---

18 kW Aluminum Air-Cooled Standby Generator w/ RTS-E-200A3 Transfer Switch
FREE LIFTGATE DELIVERY, NO TAX
QuietSource 18kW Air-Cooled Standby Generator Model 5416 - View specifications, installation drawings, installation guidelines, sizing guide, and product manual. All new generators are covered by a 3-Year Manufacturers Warranty. After ordering from Distributed Energy Company, don't forget to register your product.
To view all Generac Guardian products visit our website. For additional technical information or service questions e-mail craig@distributedenergy.biz or call (***)-593-5293.
FOR TECHNICAL QUESTIONS VISIT WWW.DISTRIBUTEDENERGY.BIZ

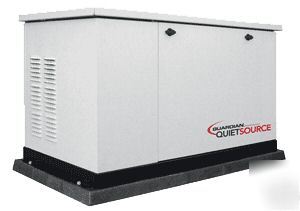

18 kW Aluminum Air-Cooled Standby Generator
Our new 18 kW model makes whole-house protection more affordable than ever before. With Generac's exclusive Quiet-Testâ„¢ feature, and a standard all aluminum enclosure, the 18kW is also a tremendous value.
A high efficiency alternator and a 992 cc OHVI® engine, the 18 kW provides the performance of a larger liquid-cooled model for less money. The 18 kW has the power to provide whole house coverage, for many moderately sized homes.
With our pre-packaged, 18-circuit pre-wired system, installation is fast, easty and inexpensive, making the 18 kW and even better value.
* Breakthrough Design: Newly designed alternator can start a 5-ton AND a 3-ton, or two 4-ton air conditioners with plenty of power to spare
* Circuit Coverage: Protects 18 circuits of your home
* Aluminum Enclosure: To better withstand the elements in highly corrosive environments
* Automatic Voltage Regulator: Quality electrical output for sensitive electronics
* Electronic Governor: Fast response to changing electrical loads
* Whisper-Testâ„¢: Patent-pending, self-test feature makes the GUARDIAN QuietSource quieter than your central air conditioner
* Generac OHVI® Industrial Engine: The ONLY air-cooled engine designed specifically for generators
* Longest Life Expectancy in the Industry: Over 3,000 hours of run time
* Full Pressure Lubrication: Continuous lubrication of all vital engine parts for protection from moment of start up for ultimate engine protection
* Spin-on Oil Filter: Automotive style for easy maintenance and prolonged engine life
* Superior Paint: Tough, textured powder coat paint finish for unmatched durability and all weather protection
* Clean Burning Fuel: Natural gas or LPV

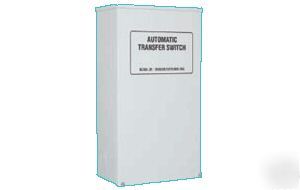

The Generac Guardian Models come standard with a pre-packaged transfer switch (RTS-E-200A3) AUTOMATIC 200 amp transfer switch with Service Disconnect.
Fuel Comsumption LP (cu.ft./hr.)/(gal./hr.)
Fuel Consumption NG (cu.ft./hr.)
Sound Output dB(A) at 23 ft. with generator operating at full load
Sound Output dB(A) at 23 ft. with generator in WhisperTestâ„¢ low speed exercise mode
Cyclic Cranking: Initially 15 sec. on, then 7 sec. rest, 7 sec. on. 90 sec. maximum duration
Automatic Voltage Regulator with Over-Voltage Protection
Starter cannot re-engage until 5 seconds after the engine has stopped
2.5 Amp Timed Trickle Battery Charger
Sound Output is 61 dB(A) at 23 ft. with generator in WhisperTestâ„¢ exercise mode
Automatic start on utility failure/7 day exercise
Stops unit. Power is removed. Control and charger still operate
Start with starter control, unit stays on. If utility fails, transfer to load takes place
Oil pressure, coolant temperature, engine speed, coolant level, cranking time, starter lockout, utility sensing
Overspeed and overcrank, low oil pressure, high coolant temperature, low coolant level, low fuel pressure, low battery voltage
Utility Voltage Monitory (fixed)
GUARDIAN QuietSource Installation Drawings
Air-Cooled and Liquid-Cooled Units
GUARDIAN Full Line Product Brochure
GUARDIAN® Standby Generators are completely automatic, helping to ensure that you remain safe from the negative and potentially harmful effects of power loss.
1. The GUARDIAN system automatically and continuously monitors incoming power from the utility line.
2. When utility power is interrupted, the control system in the generator automatically senses the loss of power and signals the generator to start.
3. The automatic transfer switch safely closes off the utility line and simultaneously opens a new power line from the generator.
4. Your GUARDIAN generator supplies electricity to the critical circuits you previously chose to back up.
5. When utility line voltage returns, the system transfers the electrical load back to the utility line. The generator continues to run for an engine cool-down period of several minutes and the entire system stands ready for the next power outage.
To ensure the system is always ready when you need it, your generator will run a 10-12 minute self-test cycle every week.
__________________________________________________
View "Selecting a System" Video
Protection Made Easy… When choosing your GUARDIAN® Standby Generator, you must first decide how many circuits or rooms you want to protect. Nobody makes it easier than GUARDIAN!
With our pre-packaged, air-cooled systems, all you have to do is match the circuits in our automatic transfer switch to those in your home's main distribution panel. Then, simply total the number of circuits and correlate that to the generator that best matches your needs. There is absolutely no reason to calculate wattages, since you'll never use all of your appliances at once. That's why GUARDIAN leads the industry in creating powerful, yet economical and easy to install emergency standby generators.
For additional wattage requirements, please see our GUARDIAN QuietSourceâ„¢ liquid-cooled models.
__________________________________________________
GUARDIAN® air-cooled generators are pre-wired and pre-packaged, making installation easy for you, your electrical contractor or one of our authorized dealers. To view our installation video (242 MB), please click on the image to the right.
A DVD of this installation video along with an Installation Guidelines booklet will be packaged with every generator purchased.
Note: Neither the installation video nor the Installation Guidelines booklet replace or supersede any information contained the Owner's Manual, Installation Guide, technical manuals or any other documents packaged with your equipment.
__________________________________________________
Breakthrough Design, Advanced Technology
GUARDIAN® and GUARDIAN QuietSource™ air-cooled generators offer the most wattage and greatest starting power in their class. The GUARDIAN QuietSource™ 16 kW can start a 5-ton and 3-ton A/C unit or two 4-ton units. The 13 kW can start a 4-ton and the 10 kW can start a 3-ton.
Whisper-Testâ„¢ (GUARDIAN QuietSourceâ„¢ models only)
Reduces noise to a whisper by lowering engine speed during the generator's weekly self-test. The Whisper-Test sound level is comparable to a car at idle and is 50% quieter (59 dBA) than the competition.
GUARDIAN's pre-packaged, pre-wired air-cooled systems make installation easy and, therefore, incredibly affordable for the do-it-yourselfer! Air-cooled models come with a pre-wired automatic transfer switch, outdoor connection box and composite mounting pad.
Generac's OHVI® (Overhead Valve Industrial) engines have been specifically designed for generator demands. These engines offer the finest lubrication technology available providing instantaneous disbursement of lubricant to all engine parts. They also feature an automotive spin-on oil filter for simplified routine maintenance.
Superior Electrical Protection
The air-cooled 10, 13 and 16 kW models feature an electronic governor, which maintains steady speed and eliminates voltage drop when loads are applied. This, as well as the automatic voltage regulator, provides a smooth rate of electricity, which is especially important for sensitive electronic devices such as computers.
New textured, powder coat paint process provides consistent coverage and better bonding to seams and exposed edges providing durability and a long-lasting, tough finish.
Aluminum Enclosure (optional on GUARDIAN QuietSourceâ„¢ models)
GUARDIAN QuietSourceâ„¢ generators are available in a corrosion-resistant aluminum enclosure to better withstand the elements. This option is especially important for homes in southern and coastal communities.
An automatic seven (7) day test of your system allows you to verify that your generator is in peak operating condition at all times.
The automatic transfer switch automatically switches the source of power from the utility to the generator within seconds of a power outage. Because it's automatic, you never have to flip a switch.
GUARDIAN and GUARDIAN QuietSourceâ„¢ generators operate on natural gas or LP gas service. This provides you with unlimited run time during extended utility power failures.
Air-cooled models feature a hinged top and removable front panel. Liquid-cooled models feature large, removable doors. This provides easy and quick access for maintenance and servicing.
Automatic safety shutdowns protect the engine and generator in the event of low oil pressure, high temperature, overspeed and/or overcrank.
The enclosure protects your generator from harmful weather and includes key locks for security. Sound-absorbing panels also reduce exterior noise levels.
A built-in battery charger ensures that the battery remains at an optimum performance level.
GUARDIAN's air-cooled pre-packaged, pre-wired systems make installation the most affordable and easiest installation possible.
For your safety, GUARDIAN standby generators are UL 2200 listed and all transfer switches are UL 1008 listed. This validates safety and kilowatt ratings.
EPA and CARB Emission Requirements
Generators up to 25kW must comply with EPA and CARB emissions requirements. All GUARDIAN generators up to 25 kW meet these requirements.
Manufactured by Generac Power Systems, we design and build our complete product from the controls to the enclosures, to our air-cooled engines specifically designed for generators. This ensures that all GUARDIAN and GUARDIAN QuietSourceâ„¢ products are built to our highest standards.
__________________________________________________
What is an automatic standby generator?
An automatic standby generator is a back-up electrical system that operates whether you are at home or away. It automatically supplies power to essential circuits of your home within seconds of a utility outage. After utility power returns, the generator shuts itself off and awaits the next outage. It operates on natural gas or liquid propane and sits outside just like a central air conditioning unit.
GUARDIAN® generators supply electricity to the electrical panel circuits of your home through a built-in load center. You select the number of circuits you want to protect and match it to the appropriate generator system. Everything on that circuit will be protected. GUARDIAN also powers furnaces, air conditioners, well pumps, water heaters and other appliances that are hard wired into your electrical panel.
While portable generators do supply power, an automatic standby generator produces a higher quality of electricity. It operates automatically and runs a weekly self-test to ensure proper response to your needs. There are no extension cords to plug in and no gas tanks to fill. It operates automatically so it protects your home even when you're away. When utility power returns, the standby generator shuts itself off.
Establishing wattage requirements of the appliances you want to power during an outage is difficult because those appliances can be plugged into various outlets in your home. That's why GUARDIAN has simplified the process. By allowing you to protect everything on chosen circuits, you no longer have to worry about individual items.
What's the difference between air-cooled and liquid-cooled?
Do they have to be maintained?
What is the advantage of an aluminum enclosure?
Aluminum is corrosion resistant, so it prolongs the life and look of the generator, particularly in salt air communities.
What is Whisper-Testâ„¢? (GUARDIAN QuietSouce models only)
Whisper-Test is a feature that reduces noise by 50% during the generator's weekly self-test cycle. That makes it as quiet as a car idling in your driveway. The generator starts up and operates at a reduced speed, lowering sound output by as much as 12 decibels for units that normally run at higher speeds under load. This allows for near-silent operation in test mode and satisfies all known sound ordinances.
How do I select a generator that's right for me?
The most accurate way is to have an electrician apply an amp meter to the circuits or appliances that will operate with emergency backup power. Measurements should be taken as the appliance starts up. That's because start up requires the greatest amount of power.
For GUARDIAN QuietSourceâ„¢ liquid-cooled models, a licensed electrician must perform a site survey to determine the size and voltage of the unit to meet your backup power needs.
How long does it take to install an automatic standby generator?
GUARDIAN air-cooled models, which come equipped with a comprehensive installation manual, can take as little as four hours to install. They come pre-mounted on a composite pad to further simplify installation. Liquid-cooled generators normally require up to 14 hours to install. Because of their additional weight, liquid-cooled units must be installed on a stronger mounting surface such as a concrete slab.
Note: Time estimates are based on typical applications. Additional time may be required to run gas conduit or gas piping or to place the unit far from the incoming gas or electrical service.
Who should install the generator?
For safety reasons and to be sure of adherence to local, state and national codes Generac recommends the generator be installed by an Authorized Dealer or licensed contractor. However, the air-cooled systems are prepackaged, prewired and come with comprehensive installation instructions to enable a competent “Do It Yourselfer” to participate in the installation process.
* Starting battery - Automotive type Group 26 negative ground, minimum 350 CCA at 0°F (Model 5240) or a minimum 525 CCA at 0°F (Models 5241, 5242, 5243 and 5244)
* 40 Amp (Model 5240) or 70 Amp (Models 5241, 5242, 5243 and 5244) double pole circuit breaker (Must be compatible with your main distribution panel.)
* Grounding rod with grounding strap
* Padlock (To lock external connection box)
* Crushed stone or pea gravel (approximately 10-12 cubic feet)
* Black poly-film or other vegetation blocking fabric (5-1/2' x 5')
* Pipe sealant (suitable for gaseous fuel connections)
* Fasteners (to mount external connection box and automatic transfer switch with built-in emergency load center)
What tools should I have available for installation?
Drill, drill bits, hole saw (type and length will be determined by the materials you will be drilling and cutting), open-end wrenches or adjustable wrenches, socket wrenches or nut drivers, standard and Phillips screwdrivers, level, sledgehammer, channel-lock pliers, spade shovel, pencil and safety goggles.
How much fuel does an automatic standby generator use?
Please refer to the individual model's specification sheet for exact figures.
Note: Figures are based on continuous operation at full load. It is unlikely that the generator will run at full load for an extended period, therefore, consumption decreases accordingly.
The generator that I've chosen has a 100-amp automatic transfer switch. What if I have 200-amp service?
Emergency circuits should always be isolated by the emergency load center. An isolated sub-panel helps to prevent overload situations.
Is a 200-amp automatic transfer switch available for the air-cooled models and the 20 kW liquid-cooled model?
No. Because a 200-amp transfer switch is not necessary. The outputs of these generators are safely carried with a 100-amp automatic transfer switch.
Parts can be purchased through any Authorized GUARDIAN Dealer. See our parts pricing Distributed Energy. Part numbers are located in the owner's manual.
What is the cost of a service/maintenance contract?
Costs are determined by the installing dealer and are based upon service levels. Cost will also vary based on hourly labor rates in your local area.
What type of oil is recommended?
15W-40 is recommended for all liquid-cooled units. The oil should be a SAE rated high detergent oil that meets API Service Class SF requirements for gasoline engines.
Propane tanks are usually rated by pounds. Is there a conversion that can be applied to the fuel consumption numbers?
Yes. For general conversion, propane weighs 4.24 pounds per gallon. 1 lb. = 8.58 cu. ft. 1 gallon = 36.39 cu. ft.
Where do I go to have warranty repairs performed?
Any Authorized GUARDIAN Service Center can perform warranty service. Dealers are located throughout the USA.
GUARDIAN generators are made in the United States. Manufactured in Wisconsin by Generac Power Systems Inc., we design and build our complete product from the controls to the enclosures, to our air-cooled engines specifically designed for generators. This ensures that our products are built to our highest standards.
