Ge 30 kva 480 primary 208Y/120 sec. 9T23B3872.

What is for sale: Ge 30 kva 480 primary 208Y/120 sec. 9T23B3872.

---

YOUR BEST SOURCE FOR LOW COST CIRCUIT BREAKERS AND ELECTRICAL EQUIPMENT

Phone: 1.866.301.4255 Fax: 561.842.7674
__________________________________________________________________________________________________________________________

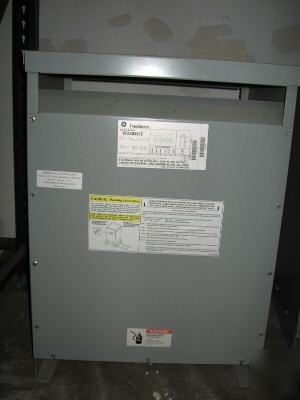

GE 30 KVA THREE PHASE DRY TYPE TRANSFORMER. CAT# 9T23B3872 480 PRIMARY 208Y/120 SECONDARY. ITEM IS USED BUT WAS ONLY USED FOR 3 WEEKS AS A TEMPORARY.

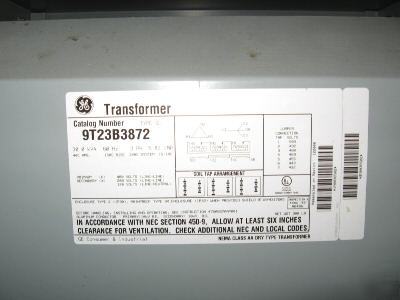

Manufacturer Part Number: 9T23B3872
Manufacturer: General Electric / GE
Construction: DRIP PROOF, VENTILATED
Secondary Voltage: 208 V STAR/120 V
Power Rating in KVA - UOM: kVA
Taps: (2) +2.5 PERCENT X (4) -2.5 PERCENT
Size: 24 INCH W X 18.07 INCH D X 32-1/4 INCH H
Weight: 300 LB (ALUMINUM), 315 LB (COPPER)
Additional Information: APPLICABLE STANDARD NEMA ST-20, ANSI, IEEE
Classification: Dry Type General Purpose Transformer
TYPE QL; CONSTRUCTION DRIP PROOF, VENTILATED; PRIMARY VOLTAGE 480 V DELTA; SECONDARY VOLTAGE 208 V STAR/120 V; 60 HZ; POWER RATING 30 KVA; 3 PHASE; TAPS (2) +2.5 PERCENT X (4) -2.5 PERCENT; TEMPERATURE RISE 150 DEG C; NEMA 2; SIZE 24 INCH W X 18.07 INCH D
Edison Electrical Surplus Inc. provides a 1 YR REPLACEMENT WARRANTY on all items
