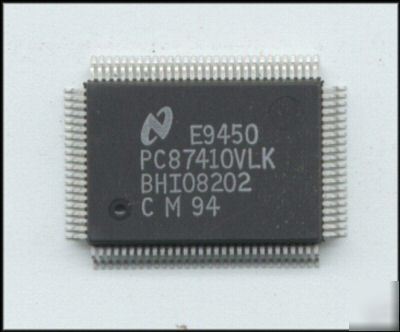

87410 / PC87410VLK / PC87410 interface controller

What is for sale: 87410 / PC87410VLK / PC87410 interface controller

---

Now over 1,000 items in our Store!
The PCI-IDE Interface Controller is designed to interface the IDE drive directly onto the PCI bus. It provides write posting and read pre-fetches, allowing the CPU to run concurrently with IDE cycles. It connects IDE drIves ``gluelessly'' into the PCI bus and supports faster ATA devices using modes 1, 2 and 3 through PIO accesses. It supports dual IDE channels for up to four drives, and works seamlessly with the National Semiconductor's SuperI/O
A full suite of software drives included with device are fully tested with DOS 5.0±6.x, Windows 3.x±4.x, Windows NT, OS/2 2.x, Novell Netware 3.1x±4.x, and SCO UNIX 3.x.
Fully compatible with PCI specifications rev 2.0 (April, 1993)
Programmable Base Address registers
Interfaces with the 32 bits PCI local bus to IDE drives
Support IDE PIO timing mode 0, 1, 2 of ANSI ATA specifications
Support Mode 3 (11 MB/s) timing proposal on enhanced IDE (IDE-2 or ATA-2) specifications
Two IDE-2 channel supported (each channel supports 2 devices)
Supports primary IDE or secondary IDE address
16-Byte FIFO provide 4-level Posted Write and Read ahead buffers per channel for concurrent system operation
Programmable command and recovery timing for reads and writes per channel
Independent timings for command registers and data registers
Slew rate controlled output directly interface with IDE devices
Supports either IRQ14/15 or INTAÝ/BÝ
Hardware and Software chip enable/disable capability
100 pin PQFP package, NO other glue logic needed and 12 mA transceivers are built in
