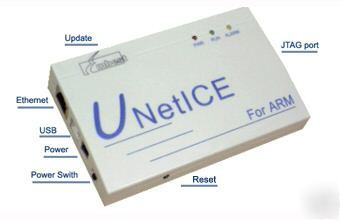

UNetICE for ARM UNetICE for ARM
UNetICE for ARM is the new-generation high-speed real time Jtag emulator made by . UNetICE connects the PC USB port or Ethernet port to the JTAG interface of the arm target board and allows Flash programming and debugging.
Ø Examine memory and registers.
Ø Single-step through programs.
Ø Insert multiple breakpoints.
UNetICE for ARM Jtag emulator includes:
Ø Jtag port(20-pin IDC plug port) for connecting target board
Ø USB and Ethernet port for connecting host PC
Ø External power supply socket and power switch
Ø Red, green, yellow emulator state indicator
Ø Supports all ARM7 and ARM9 series kernel CPU
Ø Supports Windows98/NT/2000 /XP host
Ø Supports standard 20-pin JTAG port connecting to target
Ø Supports two hardware breakpoints/two data breakpoints/unlimited software breakpoints (in fact this is determinated by arm core)
Ø Supports 10/100M Ethernet port or USB port connecting to host PC
Ø Supports IDE, ARM ADS and ARM SDT debugger
Ø Downloading and debugging speed up to 200 ~ 800KBytes/S
Ø Supports internet sharing among development team and remote debugging
Ø Capability updating by firmware, firmware can be fast upgraded within 30s
Ø 1x UNetICE for ARM USB/Ethernet Jtag emulator
Ø 1x 20 pin JTAG interface cable
Ø 1x CD with software & Manual
