Conrac/ phi 1 1/2" tube bender


What is for sale: Conrac/ phi 1 1/2" tube bender

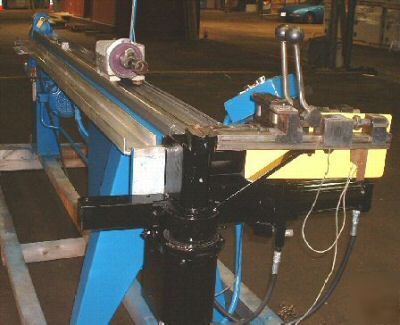

Conrac/ PHI 1 1/2" Tube Bender, Hydraulic powered, with preset dial a bend control, Loaded with Tooling, Model 210 R.H., ser 84693-185, type Sychrobender, 3HP 230/460 3ph, 11ft mandrel bed length,

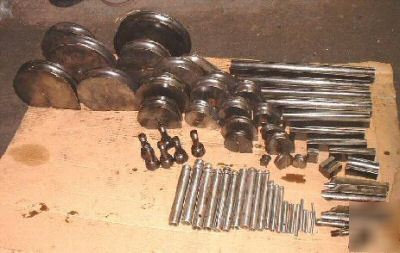

List of Tooling that comes with machine
Bending Dies 21 each as follows 1 1/4" x 5" R , 1 3/8" x 5 1/2" R , 1 1/2"x 4 1/2" R , 1 1/8"x 4 1/2"R , 1 1/8" x41/2"R , 1 3/8" x 4 1/8"R , 1 1/2"x 6" R , 1" x 4" R , 3/4" x 3"R , 1 1/4"x 3 3/4"R , 1 3/8"x 2 3/4"R , 1 1/8" x2 1/4" R , 1" x 3"R , 3/4" x2 1/4"R , 1"x 2"R , 5/8"x 1 7/8"R , 5/8" x1 1/4" R , 1/2" x 2"R , 5/16" x1 1/4"R , 5/16" x5/8" R , 3/4" x 3"
1 1/2" , 1 3/8" ,1 3/8"TOD, 1 1/4"-100 , 1"TOD , 3/4"TOD ,3/4"TOD , 5/8" ,1/2" CL , 1/2"CL , 5/16"CL ,5/16"
Mandrels 24 each most made by clark & Lewis
1 1/2"x .049 , 1 1/2" x .058 , 1 3/8" x.049 , 1 3/8x .065 , 1 1/4" x xPHI , 11/4" x .065 , 1 1/4" x .049 , 1 1/8" x .049, 1" x 058, 3/4" x .020 , 3/4" x.042 , 3/4"x .049 , 5/8" x .030 , 1/2" x .028 ,1/2" x .020 , 1/2" x .025 , 3/8" x.020 , 5/16"x .016 ,1/4 x .014, 1/4 x .020 , 1/4x .022 , 1/2" x .035
1 1/8" x 2 1/4" , 1 3/8x 2 3/4" , 5/8' x 1 1/4"
Collets 6 - 1 1/4" , 1" , 3/4" , 3/8" , 1/2" , 5/8"

Contact: D_gregory@parts-recycling.com (Darryl Gregory) (email hidden).
