Saint-gobain astipure PFD2 316A controlled flow pump

What is for sale: Saint-gobain astipure PFD2 316A controlled flow pump

---

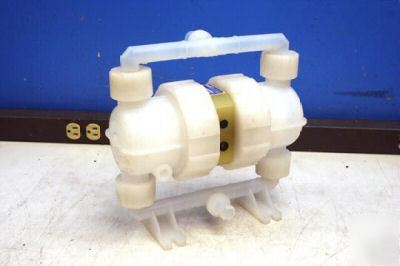

Saint-Gobain AstiPure PFD2 316A Controlled Flow Pump 5 GPM
This does not mean that the unit doesn’t work, only that we have not tested or checked it out.
This may also mean that we are not knowledgeable in that specific item.
Please call MONIQUE Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions
between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time.
The Item may vary from picture as manufacture may change model appearance.
All information, including description, specifications and features are from a manufacturers
data sheet or manual and are subject to change without notice.
Meaning that all information included in the description, specifications and features
What you see is what you get! If it doesn’t show it you probably won’t get it!
Saint-Gobain AstiPure PFD2 316A Controlled Flow Pump 5 GPM
* No metal parts (internal or external)
* No rotating shafts or glands to cause leakage
* Pneumatically operated (dry air or nitrogen)
* Adjustable pumping rate up to 5 GPM (20 l/min)
* Suitable for liquid temperatures from 32°F (0°C) up to 212°F (100°C)
* Transfer of ultra pure acids and solvents used in the semiconductor industry
* Recirculation, dispensing, and filtration with controlled flow rates and volumes
* Chemical injection and sampling
* Transfer of chemicals and solvents in cleanrooms
* Safe transfer of corrosive chemicals and solvents in hazardous areas
* Transfer and dispensing of pharmaceuticals
* The AstiPureâ„¢ PFD pumps are pneumatically operated: two bellows made from PTFE reciprocate horizontally. Their pumping frequency is much lower than an equivalent diaphragm pump and results in an extended life. Due to this low frequency and amplitude of the bellows pump, we guarantee a lower level of particle contamination.
* All AstiPure PFD pump wetted components are manufactured with High Purity PFA and PTFE and are suitable for pumping even the most corrosive concentrated chemicals (acids and solvents).
* All other components are manufactured with high technology materials; e.g. PVDF and PEEK, and ensure no ionic contamination of the chemical, even if there is a bellows failure.
* Maximum Suction Head: 11.5 feet
* Maximum Air Pressure: 72.5 PSI
* Maximum Back Pressure: 58 PSI
* Maximum Air Consumption: 8 SCFM
* Maximum Air Connection: 5/32” I.D.
