Q-bit qbh-7-4012 amplifier 100 to 2000 mhz


What is for sale: Q-bit qbh-7-4012 amplifier 100 to 2000 mhz

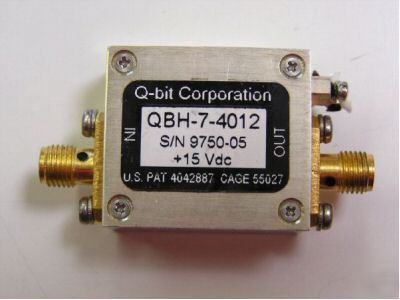

Q-Bit QBH-7-4012 Amplifier 100 to 2000 MHz
Q-Bit Corporation is no longer in existance, according to http:// /encyclopedia/wherenow.cfm, but I was able to pull the specs off the amplifonix web site.
Frequency: 100.0 to 2000.0 MHz
Gain: 19.5 dB Typical, 18.5 dB Min.
Noise Figure: 3.2 dB Typical, 4.0 dB Max.
1 dB compression point: 23.0 dBm Typical, 22.0 dBm min.
3rd Order Intercept: 33.0 dBm Typical
2nd Order Intercept: 52.0 dBm Typical
VSWR: 1.5:1 Input, 1.8:1/1.5/1 Output Typical/Max.
Power Supply: 15.0 Volts @ 190.0 mA
* Arizona residents add 6.1% Sales Tax

Contact: a.meyers@parts-recycling.com (Anthony Meyers) (email hidden).
