90 ton, cincinnati, 90CB x 8 press brake

What is for sale: 90 ton, cincinnati, 90CB x 8 press brake

---

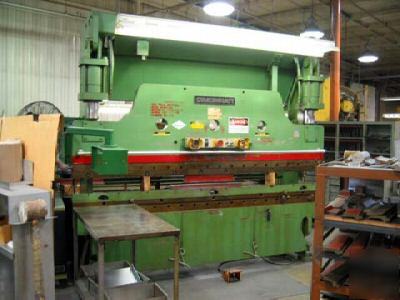

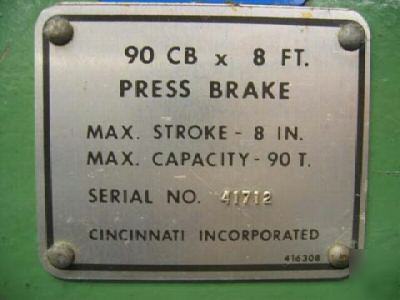

90 Ton Cincinnati CB90 x 8 Press Brake
Capacity: 90 Ton (Low or Medium Speed); 40 Ton (High Speed)
Overall Length Bed and Ram: 10'
Distance Between Housings: 8'6"
Stroke Length (Adjustable): 8"
Adjustable Speed Control: 150 IPM - High
Full Length Dovetail Slots Across Bed Face, Front & Rear
Bed and Ram Machined for Angle Brackets
Approximate Overall Dimensions: 125" L-R x 45" F-B x 117" H
Approximate Weight: 15,000 Lbs
BENDING CAPACITIES (MILD STEEL):
9' x 10 Ga. (Over 1-1/8" Vee Die Opening)
5' x 1/4" (Over 2" Die Opening)

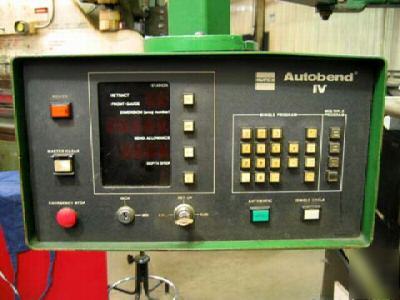

Hurco ABS-5 CNC Gauging System
*Preliminary Specifications Subject to Verification.
