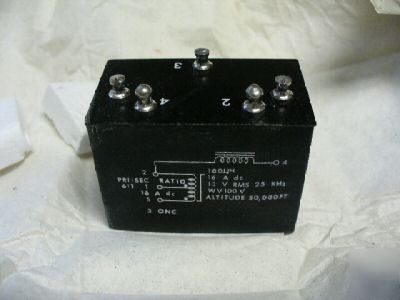

Transformer,power autotransformer

What is for sale: Transformer,power autotransformer

---

TERMINAL TYPE AND QUANTITY - 4 SOLDER STUD
(NON-CORE DATA) WINDING TAP LOCATION - TAP W/O CENTER TAP SINGLE COMPONENT SINGLE PRIMARY OUTPUT
WINDING OPERATING VOLTAGE - 13.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE PRIMARY OUTPUT
WINDING OPERATING CURRENT - 16.0 AMPERES DC NOMINAL SINGLE COMPONENT SINGLE PRIMARY OUTPUT
FREQUENCY RATING - 25.0 KILOHERTZ NOMINAL SINGLE COMPONENT
WINDING FUNCTION AND QUANTITY - 1 PRIMARY, FIXED AUTOTRANSFORMER TYPE SINGLE COMPONENT
MOUNTING METHOD - THREADED HOLE SINGLE GROUP
MOUNTING FACILITY QUANTITY - 2 SINGLE GROUP
THREAD SERIES DESIGNATOR - UNC SINGLE GROUP
NOMINAL THREAD SIZE - 0.138 INCHES SINGLE GROUP
(NON-CORE DATA) THREAD CLASS - 2B SINGLE GROUP
(NON-CORE DATA) THREAD DIRECTION - RIGHT-HAND SINGLE GROUP
DISTANCE BETWEEN MOUNTING FACILITY CENTERS - 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
INCLOSURE TYPE - FULLY INCLOSED
OVERALL LENGTH - 1.870 INCHES MINIMUM AND 1.930 INCHES MAXIMUM
OVERALL HEIGHT - 1.600 INCHES MAXIMUM
OVERALL WIDTH - 1.130 INCHES MAXIMUM
RELIABILITY INDICATOR - NOT ESTABLISHED
III MAXIMUM OPERATING TEMP - 155.0 DEG CELSIUS
(NON-CORE DATA) CUBIC MEASURE - 3.5 CUBIC INCHES
