Lathe 2-axis dro kit, tough accurate & easy to use

What is for sale: Lathe 2-axis dro kit, tough accurate & easy to use

---

SMW PRO DRO 2-Axis Lathe; Complete Retrofit Kit
PRO DRO Lathe Kit is a Top of the Line Digital Read-Out System that delivers exceptional Accuracy. Our Systems are Tough, Accurate and Easy to Use! You have full Measurement support in Fast Accurate One-offs thru Quick Manual Lathe production.
Precision Machining; results from a Quality Scale Set; a single word says it all “Certified”. Precision Measurement is no accident a Certified Scale Set is Fully tested and proven to meet its Accuracy Specifications. Cheap DRO Systems skip the expensive Testing necessary to deliver a Scale of Proven Accuracy. Many of them provide no Linear Accuracy Specifications at all.
Major System Advantages; System allows setting of fixed Absolute Positioning Points. Tool Offset Compensation gives you quick tool changes. A Large SDM or Multi-Axis Positional Memory allows fast accurate Move to Zero repetitive production. Full measurement support in either Inch or Metric operation.
High Resolution X-axis Scale 0.0004”/.001um this is an expensive option with most DRO Systems. We provide it as part of our kit! A high resolution crossfeed Scale has numerous advantages. It makes much higher tolerances possible and will substantially reduce fit and finish time.
SMW Precision is the North American Factory representative for Foic. Foic is one of the World’s Largest and Oldest makers of Precision Linear Measurement Scales and Systems. Our Systems reflect over 40 years of manufacturing excellence and commitment to Quality. Expert Technical, Service and Sales support is available at (***)-533-9016 from 9am to 5 pm PST Monday through Friday. We supply Digital Measurement solutions for many Machine Tools.

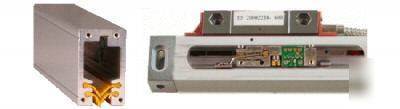

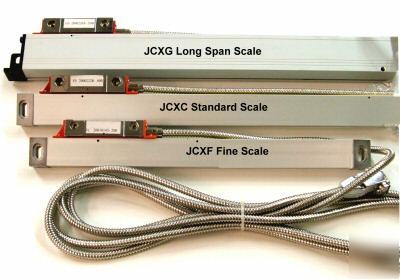

High Precision Scales; Sealed Glass Strip Scale technology. Glass Scales are far superior in both Linear Accuracy and dimensional stability. Our Sealed Glass Scales do not become damaged from Swarf or have material buildup problems. Each Scale is serial numbered with a Certified to meet Scale Specifications listed below. X-axis Scale is JCXF1 and Bed Scale is JCXE5.
Optical infrared measuring system, wavelength:880mm
>800 inch/min(1micron) >2400 inch/min(0.0002”)
Temperature 32-105° Moisture 90% (20±5°)

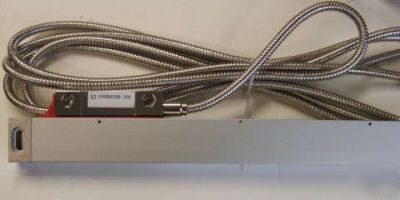

Includes 2 Sealed Glass Scales; a 5um/0.0002” resolution Y-axis or Bed scale; your choice of 32, 36 or 40 inches of travel; Scales of other lengths up to 120” travel are available. X-axis or Crossfeed Scale is 1um/0.00004” with your choice of 8, 10 or 12 inches of travel. Encoder and end caps add 5.25 inches to travel length. Let us know on ordering correct travel lengths for your machine application. Call if you have questions!
Kit includes 2-axis Lathe Display, Display mounting Arm, Scale mounting kit with hardware. Installation kit and Operation instructions are done by an American Machinist.
Reliability- Each System is made in strict compliance to ISO9001-2000 quality control standards. Display cases are precision die cast and have a Splash-Proof Front. This is a Tough reliable System built for the Machining environment.

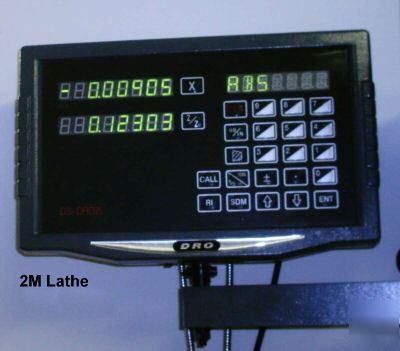

Ease of Use- A Tactile Touch keypad eliminates common keying errors. LCD display yellow/green increases visibility with low eye fatigue.
* ABS/INC Measurement Operation
* 200 Point SDM Multi Axis Position Memory
* Inch/ Metric Conversion at any Point
Display features and functions are built to streamline the machining process and increase productivity. There are no complex menu’s and functions are easy to learn and quick to use.
Power requirements 120 or 240 volt single phase 50 or 60 Hz
* PC Capable RS232 port w/Cabling & Software
* 120 volt power cable Standard
* On/Off Toggle Switch on back
* Lithium Battery Memory Backup
* Clear Plastic Display Cover
Installation we support Installation of our products! Professional Lathe Kit is one of the easier DRO installations. With a ball bearing driven Encoder installation tolerances are less demanding than many other DRO Scale forms. Warrantee 3 years for manufacturing defect in function or accuracy.
