869801 ice for 8051 mcu using keil C51, special offer

What is for sale: 869801 ice for 8051 mcu using keil C51, special offer

---

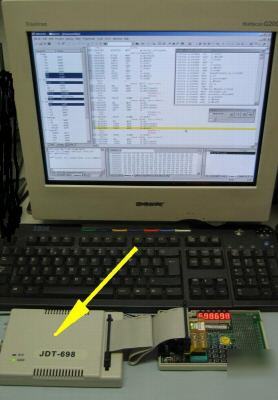

In-Circuit Emulator ( ICE ) for 8051 MCU
Dear Sir, Maybe you are using 8051; or learning 8051; or just searching for 8051. That's OK. But if you want to be a professional embedded system developer in the field, facing to the more and more complicated problems, you have to enhance your working environments by using some advanced software and hardware tools. As an 8051 user, the Keil C for 8051 development environment would be the no.1 software choice; And my this item might be your reasonable choice for ICE tools you dreamed. Let's see:
- The ICE is using Philips HOOKS IC P87C52X2 (Can be changed other HOOKS chip, such as P89C66x, P8xC591, P8xC51Rx2).
- Exactly not use any 8051 internal resources for emulator-self.
- Designed for Keil C51 uVision2,3 debugging environment.
- Can emulate and debug 64KB user program.
- Can monitor and display 8 channels external logic status matching with your 8051 instruction steps.
- Can monitor and display the 8051 output Pin TXD, Support Keil C51 Printf() function's printing output.
- Can work with 2.7-5.5VCC 8051 MCU.
- Can emulate the MOVX read/write 64KB memory in MCU internal, Do not occupy the P0,P2 and WR,RD Pins when read/write the memory.
- Can emulate the internal RAM in RX2,RX+...and 78E5x...series.
- Can be set real-time display all internal status every 0.1-20s when it's full speed running.
- MCU P0 & P2 port can be set as I/O port, also can be set as data/address bus.
- 64KB Tracking memory, can record 64KB instruction running histories.
- Can select internal/external clock source, 2 - 40MHz(12clock).
- Support Continue/Step running for debugging.
- P0 and P2 port has the protection circuit (removeable).
- Connect PC with USB port, make the program debugging and code loading more smooth.
- No need AC/DC adaptor, using USB bus power.
- Support Windows 98/2000/XP.
Supported Devices (DIP-40 or PLCC-44):
Atmel - 87F5x, 89S5x, 89LS5x, 8xC5xX2, 8xC51Rx2, 8xLV5x, 89LE5x, 89S/LS8252, 89x2051-89x4051(DIP20)
Intel - 805x, 80C5x, 875x, 87C5x, 87L5x
Winbond - 77E5x, 78E5x, 78LE5x
SST - 89C5x, 89F5x, 89E5x, 89x554RD, 89x564RD
Philips - 80C3x, 8xC5x, 8xC51X2, 89C6xX2, 89C5xRx, 8xC51Rx2, 8xC59x, 8x66x
ISSI - 80C3x, 80LV3x, 80LV5x, 89C5x
Hynix - 90Cxx, 90Lxx, 97Cxx, 97Lxx
Others - Standard 8051 chips
Do not supported Devices and functions:
STC - 89x5x (built-in ROM and IAP version)
others - Special functions, such as USB, IAP functions.
Power: USB powered (External DC optional)
The item includes: 869801 ICE / DIP-40 POD / DIP-20 POD Adaptor / PLCC-44 POD / External Clock Board / 40pin flat Cable / 10pin Monitor flat Cable / USB Cable / Driver & Keil C51 (eval sw) CD
(English SW & Docs integrated by Seller).
