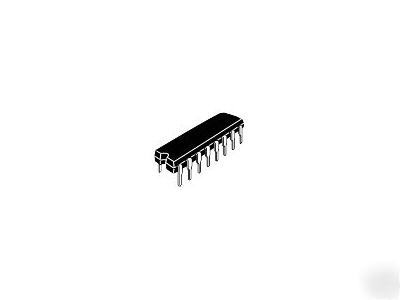

New MC14538BCP monostable multivibrator 16 pin qty: 5

What is for sale: New MC14538BCP monostable multivibrator 16 pin qty: 5

---

Item is new Dual Precision Retriggerable/Resettable Monostable MultivibratorThe MC14538B is a dual, retriggerable, resettable monostable multivibrator. It may be triggered from either edge of an input pulse, and produces an accurate output pulse over a wide range of widths, the duration and accuracy of which are determined by the external timing components, CX and RX.Output Pulse Width T = RX _ CX (secs)RX = _ CX = Farads .• Unlimited Rise and Fall Time Allowed on the A Trigger Input .• Pulse Width Range = 10 ms to 10 s .• Latched Trigger Inputs .• Separate Latched Reset Inputs .• 3.0 Vdc to 18 Vdc Operational Limits .• Triggerable from Positive (A Input) or Negative–Going Edge (B–Input) .• Capable of Driving Two Low–power TTL Loads or One Low–power Schottky TTL Load Over the Rated Temperature Range .• Pin–for–pin Compatible with MC14528B and CD4528B (CD4098) .• Use the MC54/74HC4538A for Pulse Widths Less Than 10 ms with Supplies Up to 6 V. Qty: 5
