36" kaltenbach hdm 910 cold & carbide saw

What is for sale: 36" kaltenbach hdm 910 cold & carbide saw

---

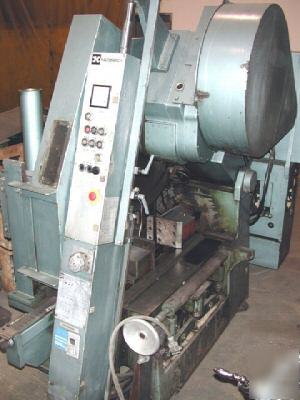

Liberty Machinery Company You are looking at a 36", Kaltenbach, HDM 910, 11.6" Rd, 9.4" Sq., 23.6" x 7.8" Rect, Auto Transfer System, Gauging Serial No. 41353Condition - UsedNew - 1981 SAW SPECIFICATIONS:
Cutting Capacity - Rounds 11.8" (300 MM)
- Rectangles 23.6" x 7.8" (600x200 MM)
- Structural Beam/Angles 23.6" x 11.8" (600x300 MM)
Cutting Speeds 42 & 84 S.F.P.M. (14/28 M/Min.)
Blade Wheel HP - (2-Speed) 7.5/10.0 HP
Feed Rate (Infinitely Variable) 0 - 39" IPM (0-1000 MM/Min.)
Electrics 460/3/60 Cycle FEED/DISCHARGE SYSTEM SPECIFICATIONS:
Length of Infeed Transfer Rail Storage Table 105"
Length of Motor Driven Roller Type Infeed Conveyor 228"
Width of Motor Driven Roller Type Infeed Conveyor 34"
Gauging (back stop) Variable to 144"
Length of Motor Driven Roller Discharge Conveyor 166"
Width of Motor Driven Roller Discharge Conveyor 34"
Length of Discharge Transfer Rail Storage Table 84"
Lift Rolls (lower raise infeed and lower raise outfeed conveyor). Infeed
conveyor forward/reverse. Conveyor driver left on/right on or both on. EQUIPPED WITH:
Somerset Systems Inc., Transfer Rail Type Stock Feed System (Model 30
HLR19G10TR Serial No. 30-4005). Motorized Vertical Bundle Clamping.
Ammeter. Measuring Scale on Front Vise. Chip removing wheel. M.D. Coolant
