Technart fediii-h electric torque driver controller
What is for sale: Technart fediii-h electric torque driver controller
Click on picture for a larger image.

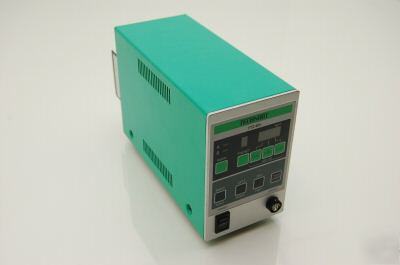

Technart FEDIII-h Electric Torque Driver Controller
The controller has not been tested, but has been powered on successfully. (The code E63 is indicating that a torque driver is not installed; there is nothing wrong with the controller)
The controller has the following features:
* 2) Reliable Control Of Tightening Torque And Process
* 3) Communication With Driver
* 4) Memory For Driver Torque Family Data
* 6) Self-Diagnostics And Overheat Protection
* 7) Comprehensive Error Messages
* 8) Two Standard Interfaces
* 9) Customizing Of Functions And Parameters
* 11) Reversing Angle Control
* 10) High Speed Tightening Control
The controller has the following specifications:
* Control Processor : 32-Bit Single Chip Risc Processor
* Power Supply Rating : Ac100v, 110v, 115v, 220v, 230v Or 240v
* Insulation Resistance :10 Mega Ohm Or More At 500v Mega
(Between Ac Plug And Controller Frame)
* Withstanding Voltage :1 Second At Ac1200v
(Between Ac Plug And Controller Frame)
* Power Supply To Driver : Dc35v (Rectified From Ac35v)
* Torque Range : In Accordance With Torque Family Data
More information on this controller can be found at the websites below:
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The Technart FEDIII-h Controller is sold guaranteed NON-DOA with a 7 day Right Of Return.
