P-400 pfauter universal gear hobber #24770

What is for sale: P-400 pfauter universal gear hobber #24770

---

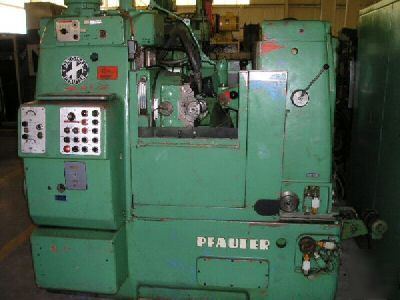

P-400 PFAUTER UNIVERSAL GEAR HOBBER
Serial No. 22105, New 1972, Model P-400
Suitable for the cutting of spur & helical gears,
worm gears, splines, pinions, sprockets, and
other workpieces of similar profile up to
Universal Hob Head W/Tangential Feed And/Or
Conventional And Climb Hobbing Capability
Diagonal, Tangential, Axial And Radial Hobbing
Automatic Work Cycles (Including Auto-2-Cut)
Infinitely Variable Feeds And Speeds
Rapid Traverse For All Movements
Automatic Forced Lubrication To All
Hydraulically Operated Tailstock W/Center & Bushing
Self Contained Coolant System, Pump & Piping
Full Complement Of Electrics (Motors/Controls)
Operator's Manual, Wiring Diagrams
Maximum diameter work.................. 16"(400mm)
Maximum face width..................... 12"(300mm)
Coarsest diametral pitch............... 3 DP(8 Module)
Maximum distance work table to
center of hob spindle.................. 18.5"(470mm)
Maximum distance work table to
tailstock center....................... 25"(638mm)
Maximum hob diameter................... 6"(160mm)
Maximum length of hob.................. 6"(160mm)
Maximum adjustment of hob spindle, auto 4"(100mm)
Manual................................. 4.5"(120mm)
Maximum swivel of hob slide............ 240 degrees
Diameter of work table................. 15.5"(400mm)
Diameter of hole in work table......... 3"(80mm)
Speeds (infinitely variable)........... 80 to 500 rpm
Axial feeds, rev./per/min.............. 0.0157"- 0.193"
Radial feeds, rer./per/min............. 0.0078"- 0.0964"
Tangential feeds: rev/per./min......... 0.0066"- 0.0826"
Floor space require.................... 112x71x71"
Floor space require.................... (2845x1803x1803mm)
Approximate machine net weight......... 13,200 lbs.(6000 kGs)
PRICE: F.O.B. Cincinnati, OH.......... $26,750.00
All machines/equipment subject to prior sale.
