10 pcs on-semi # MC10E1651FNR2, bbg ecl comparator dua

What is for sale: 10 pcs on-semi # MC10E1651FNR2, bbg ecl comparator dua

---

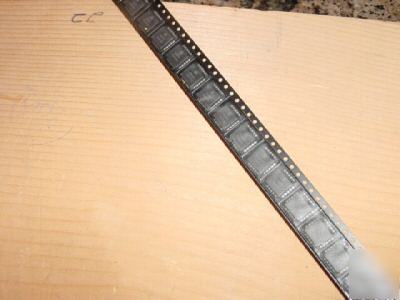

This item includes the following: 10 pcs. On-semi # MC10E1651FNR2. (PLCC Package). As always, we will are willing to look at all Best offers! Please note that we will also consider offers on different quantities than we have posted!
The MC10E1651 is functionally and pin-for-pin compatible with the MC1651 in the MECL III family, but is fabricated using Motorola's advanced MOSAIC III process. The MC10E1651 incorporates a fixed level of input hysteresis as well as output compatibility with 10KH logic devices. In addition, a latch is available allowing a sample and hold function to be performed. The device is available in both a 16-pin DIP and a 20-pin surface mount package.
The latch enable (LENabar and LENbbar) input pins operate from standard ECL 10KH logic levels. When the latch enable is at a logic high level the MC10E1651 acts as a comparator, hence Q will be at a logic high level if V1 > V2 (V1 is more positive than V2). Qbar is the complement of Q. When the latch enable input goes to a low logic level, the outputs are latched in their present state providing the latch enable setup and hold time constraints are met.
The 100 series contains temperature compensation.
* Typical 3.0 dB Bandwidth > 1.0 GHz
* Typical V to Q Propagation Delay of 775 ps
* Typical Output Rise/Fall of 350 ps
* Common Mode Range -2.0 V to +3.0 V
* Operating Mode: VCC = 5.0 V, VEE = -5.2 V
* No Internal Input Pulldown Resistors
* ESD Protection: > 2 KV HBM, > 100 V MM
* Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
* Moisture Sensitivity Level 1
For Additional Information, see Application Note AND8003/D
* Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
* Transistor Count = 85 devices
