Mini n-link arm usb jtag LPC2148 ARM7 ARM9 cortex-M3

What is for sale: Mini n-link arm usb jtag LPC2148 ARM7 ARM9 cortex-M3

---

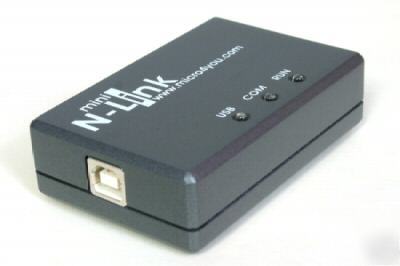

The mini N-LINK USB Interface Adapter connects your PC's USB port to your target hardware (via JTAG) and allows you to debug embedded programs running on target hardware.
mini N-LINK, fully supports both on-chip and external Flash programming of devices using preconfigured Flash algorithms contained in RealView MDK-ARM or user defined algorithms. .
* Approximately weight and size.
* On-chip Debugging (using on-chip JTAG )
* Supports JTAG clock speeds up to 1MHz
* Memory read/write speeds of >28KB/s
* Fast Single-Step 50 Instructions/Sec
* Download programs to target device
* Insert multiple breakpoints.
* User I/O via the Debug Channel.
The following microcontrollers are supported by the mini N-Link USB-JTAG Adapter.
* Analog Devices (ARM7/ARM9/Cortex-M3 Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032, ADuC7033, ADuC7128, ADuC7129
* Atmel (ARM7/ARM9/Cortex-M3 Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7S128, AT91SAM7S256, AT91SAM7S32, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128, AT91SAM7XC256, AT91SAM9260, AT91SAM9261
* Freescale Semiconductor (ARM7/ARM9/Cortex-M3 Family)
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144
* Luminary Micro (ARM7/ARM9/Cortex-M3 Family)
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315, LM3S316, LM3S328, LM3S601, LM3S610, LM3S611, LM3S612, LM3S613, LM3S615, LM3S628, LM3S801, LM3S811, LM3S812, LM3S815, LM3S828
* OKI (ARM7/ARM9/Cortex-M3 Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML696201, ML69Q6203
* NXP (founded by Philips) (ARM7/ARM9/Cortex-M3 Family)
LPC2101, LPC2102, LPC2103, LPC2104, LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136, LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214, LPC2220, LPC2290, LPC2292, LPC2294, LPC2364 New!, LPC2366 New!, LPC2368 New!, LPC2378 New!,LPC2458 New!, LPC2468 New!, LPC2880 New!, LPC2888 New!, LPC3180
* Samsung (ARM7/ARM9/Cortex-M3 Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B
* Sharp (ARM7/ARM9/Cortex-M3 Family)
LH75400, LH75401, LH75410, LH75411
* STMicroelectronics (ARM7/ARM9/Cortex-M3 Family)
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42, STR911FM44, STR912FW42, STR912FW44
* TI (ARM7/ARM9/Cortex-M3 Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768
$10.00 - delivery 7 - 21 days (Worldwide)
$1.00 / item, Special cases apply.
For other countries - Please contact us
Programming and Debugging with EasyARM2103 Board
Photo Sharing and Video Hosting at Photobucket
Debugging the source code on RealView MDK
Photo Sharing and Video Hosting at Photobucket
Free LQFP-48 Adapter SMD Adapter
