Programmable cnc rotary table 4 axis 320MM ac servo

What is for sale: Programmable cnc rotary table 4 axis 320MM ac servo

---

CENTROID's new DX1 single axis Controller and 320mm Rotary Table

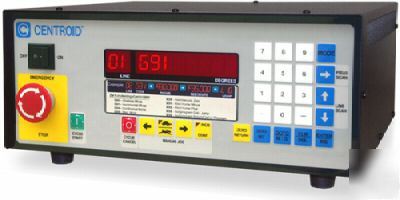

Designed for use with any make or model of CNC/NC machine tool or Manual Mill. This versatile, easy to program single axis control is the brains behind all of Centroid's AC (brushless) or DC (brush) servo powered rotary tables. Your shop will profit from this Programmable Rotary Table package offering affordable automation for your machining center or knee mill. The DX1 is made in the USA and is based on proven reliable, user friendly, CENTROID CNC technology. The DX1 is built with an all digital single PC board using fast DSP servo motion technology.
The RT-320 CNC Rotary Table is designed for use on any CNC or Manual Machine Tool even a drill press. Comes complete with simple to follow instructions and "phone us anytime" technical support. Start programming and making parts right away.
This listing includes BOTH Centroid's DX-1 programmable driver box and the model RT-320 (12.6") rotary table.
If you need Centroid's RT-320 rotary table packaged to install onto your existing Centroid powered CNC machine click here.
Programmable Rotary Table Features include:

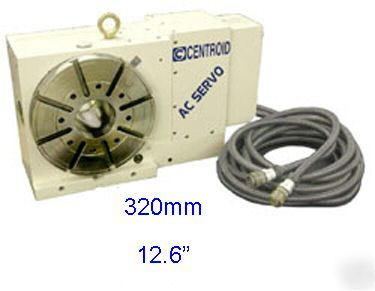

* 320mm (12.6") rotary face plate.
* Can be used spindle up (vertical) or spindle horizontal.
* 360 degrees rotation in 3.6 seconds with AC brushless servo.
* Runs on 220VAC single phase power.
* Homing switch assures perfect repositioning at power up.
* Standalone or connect to your machine's control.
* Command the next position from a manual pushbutton or your CNC control.
* Pneumatic brake locks the table in position while machining.
* Optional 3 jaw chuck with adaptor plate #SC-8 or #SC-10
* Optional tail stock #TSA-826
* Optional 5C adaptor. Bolts onto the face plate #5CC-1
* Fully supported. No annual service contracts needed.
Center Height in Vertical (mm / inch)
Table Height in Horizontal (mm / inch)
Thru-Hole Diameter (mm / inch)
Width of Guide Block (mm / inch)
Overall Dimensions H / W / L (inch)
Ø 1 each 320mm rotary table head with AC servo motor.
Ø 1 each DX-1 Programmable single axis AC servo controller 220VAC power required.
Ø Lifetime technical support from Machines in Motion Inc.
Available, by phone and Email. Typical Email response is less than 24 hours.
Machines in Motion will provide you with any related factory technical documents as needed.
Professional installation is available for this item.
Optional 3 jaw chuck with adaptor plate #SC-8
Optional Matching height tailstock #TSA-728
Optional 5C adaptor. Bolts onto the face plate #5CC-1
5C collet set 1/8" - 1" by 1/8" increments. Set of 8 peices
5C collet set 1/8" - 1 1/16" by 1/16" increments. Set of 16 pieces
5C collet set 1/8" - 1" by 1/32" increments. Set of 31 pieces
Choose this package to integrate with your Centroid CNC control using AC servo motors. If your Centroid CNC control has DC servo motors then you will need to Contact us regarding some additional components to be packaged with your purchase.
