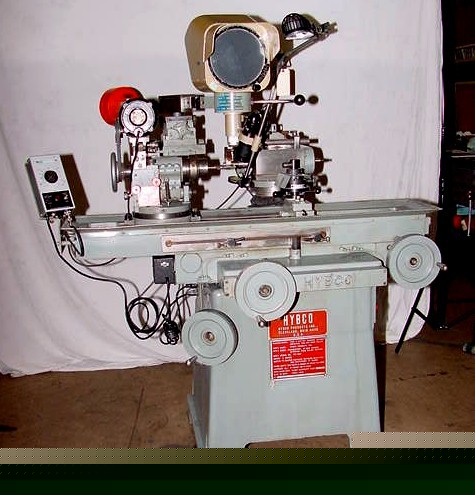

HYBCO M-1900 TOOL & CUTTER FORM RELIEVING GRINDER
HYBCO M-1900 TOOL & CUTTER FORM RELIEVING GRINDER
********* OPTICAL COMPARATOR *********
MODEL: M-1900 S/N: TG-308 NEW: 1972
TABLE WORK SURFACE ........................... 6" X 36"
LONGITUDINAL TABLE TRAVEL ......................... 14"
CROSS TRAVEL ................................... 6-1/2"
GRINDING SPINDLE, VERTICAL TRAVEL .............. 7-1/4"
HANDWHEELS, GRAD. ............................. 0.0005"
GRINDER SPINDLE TILT ......... 25 DEGREES ABOVE & BELOW
GRINDER SPINDLE INDEXES ................... 360 DEGREES
GRINDING SPINDLE SPEEDS (2) ......... 3,800 & 6,400 RPM
MAX. GRINDING WHEEL DIAMETER ....................... 7"
GRINDING SPINDLE TAPER ....................3" PER 1 FT.
MODEL #2100 MOTORIZED TWO-WAY RELIEVING FIXTURE:
SPINDLE CENTER HEIGHT ............................. 4"
STD. COLLET CAPACITY ......................... 1- 5/8"
APPROX. WEIGHT OF MOTORIZED FIXTURE .......... 115 LBS.
SCREEN DIAMETER ................................... 10"
POSITIONING COMPOUND TRAVELS, CROSS ............... 2"
MAGNIFICATION ........................... 20X & 31.25X
APPROX. MACHINE WEIGHT ..................... 2,000 LBS.
TILTING WHEELHEAD SESIGN (+/- 25 DEGREES)
ROLLER BEARING WAYS (LONGITUDINAL & CROSS)
BALL SCREW FOR WHEELHEAD SLIDE
GEAR BOX FOR LONGITUDINAL TRAVEL - FINE/COARSE SETTINGS
10" "NIKON" OPTICAL COMPARATOR ATTACHMENT
- GIVES THE OPERATOR A QUICK METHOD OF CHECKING TOOL
DIAMETERS, LENGTHS, ANGLES, AND RADII RIGHT AT THE
GRINDING WHEEL WITHOUT REMOVING THE TOOL FROM
#2100-SB (RF-591) HYBCO TWO-WAY MOTORIZED RELIEVING FIXTURE
(RADIAL & AXIAL), WITH SWIVEL BASE, COLLET SPINDLE,
& "MINARIK" ELECTRONIC VARIABLE SPEED RHEOSTAT CONTROL
(42) ERICKSON COLLETS ... UP TO 1- 5/8" CAPACITY
COLLETS FOR #2MT, #3MT, #4MT & #5MT TAPER SHANK TOOLS
VER NICE COMPLIMENT OF CAMS & INDEX PLATES
1.5 H.P./3/60/208-230-460 VOLT WHEELHEAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 208 VOLTS
1) TANGENT ANGLE WHEEL DRESSER
1) NIKON 8" OPTICAL COMPARATOR, VM-8-A, WITH
NIKON 20X LENS AND NIKON 31.25X LENS
#2, #3, #4, #5, #6, #8, #10, #11
RANGE OF ERICKSON COLLECT FFROM 1"-19/32 to 1/4 , in 1/32" INCREMENTS, APPROX. 40
GOV'T STORAGE MACHINE. VERY LOW USEAGE. BEAUTIFUL,
ALL ORIGINAL, EXCEPTIONAL MACHINE!
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
Machine Location: HARRISON, NJ
