5HP grizzly idustrial dust collector model G5954 - used

What is for sale: 5HP grizzly idustrial dust collector model G5954 - used

---

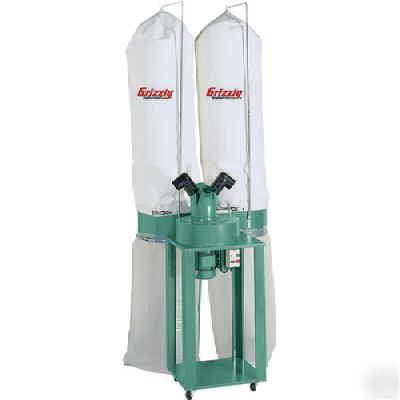

MODEL G5954 5 HP INDUSTRIAL DUST COLLECTOR-USED

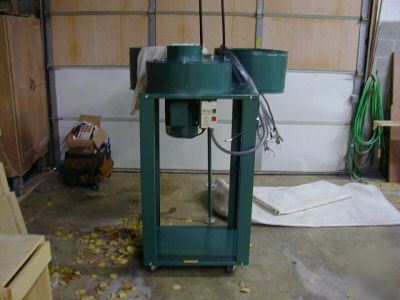

This machine was used lightley when we started our business in cabinet maufacturing and worked great! But business picked up so we ended up needed a more powerful machine. It still works like new! I included all of the Specifications from the book for any technical questions.
Weight............................................................................................................................................................. 320 lbs.
Length/Width/Height..................................................................................................................... 51-3/8 x 48 x 136 in.
Foot Print (Length/Width)............................................................................................................................ 29 x 23 in.
Type...................................................................................................................................... Cardboard/Wood Frame
Content........................................................................................................................................................... Machine
Weight............................................................................................................................................................. 366 lbs.
Length/Width/Height............................................................................................................................ 30 x 55 x 31 in.
Switch........................................................................................................ Magnetic with Thermal Overload Protector
Switch Voltage..................................................................................................................................................... 220V
Cord Length......................................................................................................................................................... 10 ft.
Cord Gauge...................................................................................................................................................12 gauge
Recommended Breaker Size........................................................................................................................... 40 amp
Plug......................................................................................................................................................................... No
Type.................................................................................................................. TEFC Capacitor Start Induction
Horsepower................................................................................................................................................5 HP
Voltage.......................................................................................................................................................220V
Prewired.....................................................................................................................................................220V
Phase....................................................................................................................................................... Single
Amps............................................................................................................................................................34A
Speed................................................................................................................................................3450 RPM
Cycle.........................................................................................................................................................60 Hz
Number Of Speeds.......................................................................................................................................... 1
Power Transfer ...............................................................................................................................Direct Drive
Bearings.................................................................................................. Shielded and Permanently Lubricated
Air Suction Cap................................................................................................................................. 4820 CFM
Static Pressure at Rated CFM....................................................................................................................17 in.
Main Inlet Size.............................................................................................................................................9 in.
Manifold Included.........................................................................................................................................Yes
Manifold Inlets.................................................................................................................................................. 4
Manifold Inlet Size....................................................................................................................................... 4 in.
Machine Collection Cap.................................................................................................... Minimum 4 Machines
Maximum Material Collection Cap......................................................................................................29.5 cu. ft.
Upper Bag Filtration.......................................................................................................................... 2.5 micron
No Of Upper Bags............................................................................................................................................2
Upper Bag Cap..................................................................................................................................21.9 cu. ft.
Lower Bag Cap..................................................................................................................................14.8 cu. ft.
No Of Lower Bags............................................................................................................................................2
Upper Bags Total Area.......................................................................................................................43.7 cu. ft.
Lower Bags Total Area.......................................................................................................................29.5 cu. ft.
Upper Bag Diameter..................................................................................................................................25 in.
Upper Bag Length..................................................................................................................................... 77 in.
Lower Bag Diameter..................................................................................................................................25 in.
Lower Bag Length..................................................................................................................................... 52 in.
Impeller Type..................................................................................................................................... Radial Fin
Impeller Size..............................................................................................................................................13 in.
Impeller Blade Thickness....................................................................................................................... 3/32 in.
Upper Bag Material.................................................................................................................................. Fabric
Lower Bag Material..................................................................................................................................Plastic
Base Construction................................................................................................ Pre-Formed Steel on Casters
Frame Construction...................................................................................................................... Formed Steel
Caster Construction........................................................................................................................ Four Plastic
Impeller Construction....................................................................................................................Welded Steel
Paint.......................................................................................................................................... Powder Coated
Height With Bags Inflated........................................................................................................................136 in.
ISO Factory ..................................................................................................................................................ISO 9001
Country Of Origin .............................................................................................................................................Taiwan
Serial Number Location ...................................................................... Machine Label Above Magnetic On/Off Switch
Assembly Time ................................................................................................................................................. 1 hour
Sound Rating ..............................................................................................................................................80 - 90 dB
Handles Four Machines Simultaneously
Includes Steel Base with Casters
