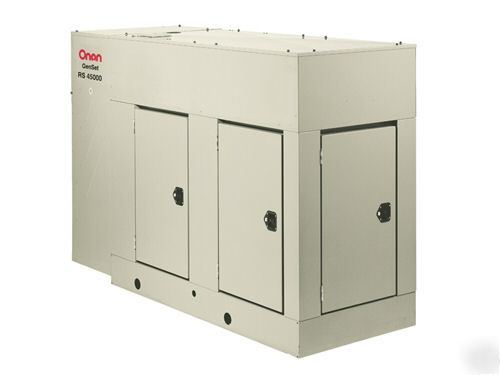

Onan RS45000 45 kw home standby generator

What is for sale: Onan RS45000 45 kw home standby generator

---

Extremely Quiet Operation - 66.3 dB(A) at 7 m
Fully Automatic Operation when used with an Onan Automatic Transfer Panel
Available for use with Natural Gas or LP Vapor
Attractive and Discreet Sound Attenuated Housing
Electronic Governor for Precise Frequency Control
Includes 120V Coolant Heater
Ratings apply to altitudes up to 3500 ft (1829 m). 85o F (30o C). Total Power available will decrease 5% for each 1000 ft (305 m) above sea level and 1.0% for each 10o F (5.5o C) increase in ambient temperature above 85o F (30o C)
1. • 2668 lb (1160 kg) Natural Gas, 2752 lb (1197 kg) LP
2. • Length: 101.5 in (2578 mm); width: 41.3 in (1049 mm); height: 71.8 in (1824 mm)
3. • 66.3 dB(A) at 7 m, average
Ford, industrial, spark-ignited
3. • Full-pressure lubrication
4. • High-capacity oil sump, spin-on oil filter
2. • 37-amp, engine-driven battery charger
1. • Enclosed exhaust silencer
• Controls generator set starting and shutdown
• Control components designed to withstand the vibration levels typical in generator sets
• High temperature, low oil pressure, overcrank and overspeed shutdowns
Brushless, revolving field, 4-lead, single phase design
At rated load is less than 125o C at standby rating, per NEMA MG1.22.40, IEEE 115 and IEC 34-1
The excitation system derives its power from the main output of the generator, eliminating the need for a separate excitation power source
Direct drive centrifugal blower
Supported by a pre-lubricated maintenance-free ball bearing
120/240 VAC, single phase, 1.0 pf
Isochronous, 0% no load to full load
-20o F (-28.8o C) to 122o F (50o C)
Drawing Reference Number 0500-3167
Automatic Transfer Panel Configurations
Dedicated Emergency Standby Service System
Full-Service Rating Standby System
1. • Sound attenuated, weather protective design, key-lockable service access doors
2. • Internal starting battery tray and tie down
3. • Heavy-duty steel housing, stainless steel fasteners
1. • Battery, 12 V, 620 cca (Part #416-0823)
2. • Battery heater kit (Part #333-0469)
3. • Full line of complementing automatic transfer panels
The Onan RS 45000 Home Standby System comes with a standard one-year warranty. Additional two and five-year warranty options are available. See your certified distributor of dealer for details.
GENUINE ONAN MAINTENANCE CARE PARTS AND PRODUCTS -
For your ongoing satisfaction and the dependability of your Onan genset, Onan offers a complete line of parts, oil, and maintenance chemicals specifically designed for Onan gensets and available at your nearby Onan dealer.
EASY TO LOCATE CERTIFIED ONAN SERVICE AND PARTS DEALERS -
Onan has trained, tested and certified over 1000 authorized Onan Service Dealers covering most major metropolitan areas in the U.S. and Canada. To easily locate the certified Onan Service Dealer no matter where you travel, call 1-800-888-ONAN or look in the yellow pages under "generators, electric".
See your distributor for more information
Distributed Energy Company, Inc.
email: craig@distributedenergy.biz
© 2005 Cummins Power Generation Specifications subject to change without notice S-1381e (6/05)
