Tektronix tm-506 power module with sc-502 dm-502 dc-503

What is for sale: Tektronix tm-506 power module with sc-502 dm-502 dc-503

---

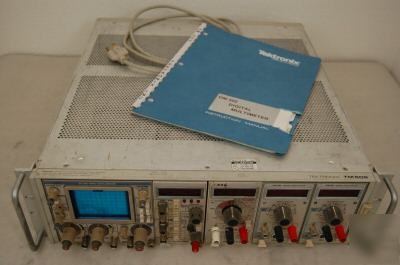

Tektronix TM-506 Power Module with SC-502 DM-502 DC-503 DM-501
The TM-506 Power Module has the following features:
* Compatible with all TM-500 Series equipment
* Tested: Powered on, fully functional
For the complete service manual (10MB), see:
ftp://bama.sbc.edu/downloads/tek/tm506/tek-tm506.pdf
The SC-502 Oscilloscope has the following features:
* Enhanced Automatic Triggering
* Tested: With an Agilent 33120A Function Generator (see pictures)
For the complete service manual (62MB), see:
ftp://bama.sbc.edu/downloads/tek/sc502/tek-sc502.pdf
The DM 502 Multimeter has the following features:
* Temperature, dB, True RMS Readings
* DC Volts Full Scale : 0.2V - 1KV
* AC Volts Full Scale : 0.2V - 500V
* AC/DC Current Full Scale : 200μA - 2A
* Resistance Full Scale : 200Ω - 20MΩ
* Temperature Probe - Optional
* dB : -60 dB to +56 dB (NOTE: Average responding, dB calibrated)
* Input Impedance : 10 MΩ normal; FET Input on 0.2 and 2 volt scales by internal jumper
For the complete service manual (17MB), see:
ftp://bama.sbc.edu/downloads/tek/dm502/tek-dm502.pdf
The DC DC503 Universal Counter has the following specifications:
* Direct Counting to 100 MHz
* Six Functions - Frequency, Period, Ratio, Time A-B, Time Manual, Totalize
* Period and Ratio Averaging
* Option 1 = More Stable Time Base: 5 parts in 10^7 accuracy
For the maintenance manual (3MB), see:
ftp://bama.sbc.edu/downloads/tek/dc503/dc503-universal-timer-counter-maintenance.pdf
* AC Volts (2 V to 500 V FS)
* AC/DC Current (2 mA to 2 A FS)
* Resistance (2 kOhms to 20 MOhms FS)
* Temperature (-55 to +125 C)
* Tested: With a 9V battery (actual voltage 8.57V)
http://70.150.67.5/DataSheet/TEKTRONIX/TEKTR_DM501_DM50292122.pdf
