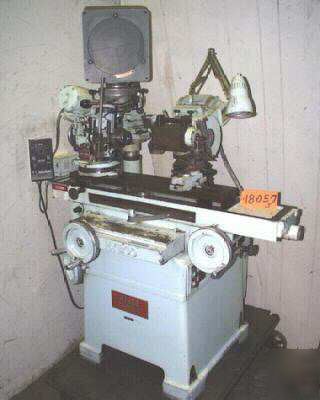

Hybco tool and cutter grinder, no. 1900, 1982 (18057)

What is for sale: Hybco tool and cutter grinder, no. 1900, 1982 (18057)

---

HYBCO, No. 1900, w/Model 2100-SB Relieving Fixture, Optical Comparator, 1982
MODEL..................................1900
SERIAL NUMBER..........................TG-539 Year:1982
Table Work Surface.....................6" x 36"
Longitudinal Movement..................14-1/2"
Cross Travel...........................8-1/4"
Grinding Spindle, Vertical Travel......7-1/4"
Grinding Spindle Rotation..............360 Degrees
Grinding Spindle Tilt..................25 Degrees Either Side Of Horizontal
Grinding Spindle Speeds................3800 - 6400 RPM
Grinding Wheel Maximum Diameter........7"

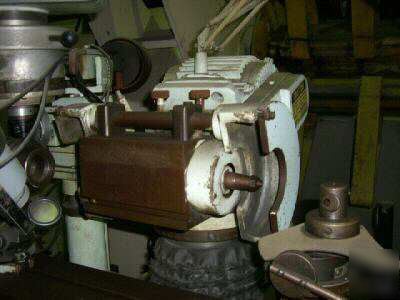

Model 2100SB Two-Way Relieving Fixture, S/N: RF-1291
Spindle Center Height.................7-1/2"
Erickson Collet Capacity..............1-5/8" Thru Spindle
Maximum Diameter Between Centers......4"
Maximum Length Between Centers........11"
1-1/2 HP Spindle Motor, 3150 RPM 230/460/60/3
1/8 HP Variable Speed Workhead Motor

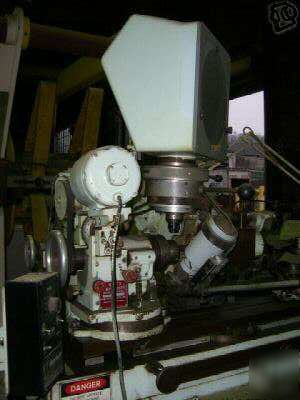

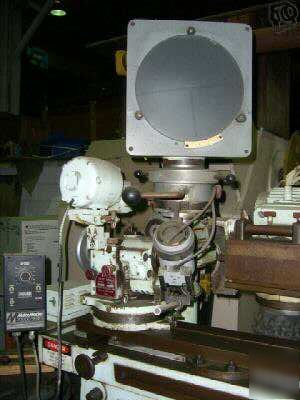

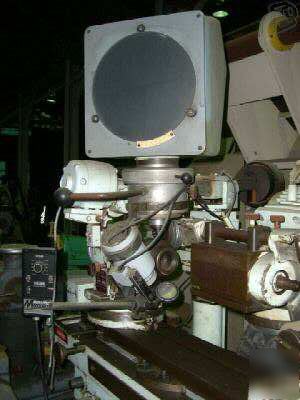

Optical Comparator-10" Screen Diameter
Approximate Weight.....................2000 Lbs.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
**********PLEASE READ BELOW**********
**Skidding, crating, palletizing and/or packaging of any item are an additional cost and will be added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. **
**We will load on a flat bed, open truck or trailer free of charge. **
**Skids shown in pictures are not included with the item. **
If you want to purchase an item and have circumstances requiring the item to be picked up at a later date, please inform us before the item is purchased.
We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. (***)-745-6008
