Hp 38554A mm - wave source module 26.5 - 40.0 ghz

What is for sale: Hp 38554A mm - wave source module 26.5 - 40.0 ghz

---

Click on picture for a larger image.

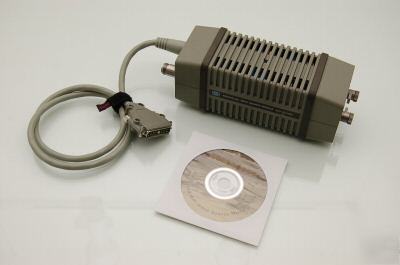

HP 83554A mm - Wave Source Module 26.5 - 40.0 GHz
This HP Wave Source Module is in good used condition. The case is in good shape, with two pencil eraser sized scratches, one on each side. The rubber feet rings are in good condition. The Source Module Interface cable is in good working order, with all 21 pins straight and clean. The two retainer screws are intact on the cord. The N port for the RF input is clean and all threads are unmarred. The two retainer slides on the front of the unit rotate smoothly and clamp firmly. This unit was fully tested and works beautifully. We plugged the interface cable into a HP 8349B microwave amplifier and performed a microwave sweep of the 83554As in-frequency range (13.25-20.00 GHz) We monitored the output of the Wave Source Module with our power meter, and the tests were reading the correct power output on a manual sweep from 26.5 - 40.0 GHz.
This unit's serial number is 2636A00587.
This comes with the HP 83554A mm - Wave Source Module Manual on CD.
Here is some info we found on the 83554A -
* Frequency range: 26.5 to 40 GHz
* Output leveled power: +8 dBm
* Output level accuracy: ±2.00 dB
* Harmonic spurious signals: -20 dBc at max. specified power
* Non-harmonic spurious signals: -50 dBc at max. specified power
* Modulation, external pulse, AM, FM
* Output connector: UG-599/U flange
* Weight: 4 lb; Size: 80 mm (3.15 in)W x 80 mm (3.15 in)H x 210 mm (8.27 in)D
The 83554A millimeter-wave source module can be driven by a variety of microwave sources providing millimeter-wave test signals for waveguide bands from 26.5 to 40 GHz. In addition, the 83554A millimeter-wave source module offers leveled high output power, full waveguide band frequency coverage, and the high frequency accuracy and resolution of the driving microwave source. Leveled output power from the 83554A is rated at +8 dBm and can permit the source module to serve as a mixer LO in some applications and also expands the available dynamic range in frequency response measurements.
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold tested and is guaranteed NON-DOA with a 7 day ROR.
