New xantrex HPD60-5 sxgpib power supply 0-60VDC 0-5AMPS

What is for sale: New xantrex HPD60-5 sxgpib power supply 0-60VDC 0-5AMPS

---

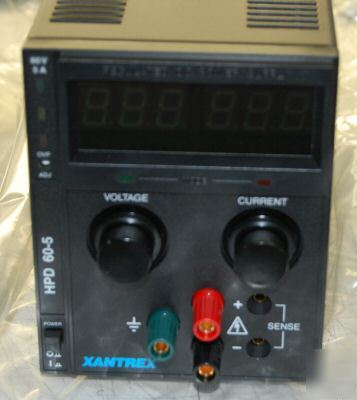

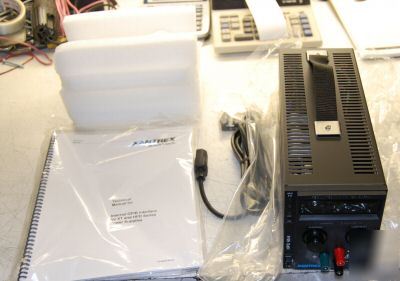

XANTREX HPD60-5 SXGPIB POWER SUPPLY 0-60VDC 0-5AMPS NEW IN THE FACTORY BOX. WE OPENED THE BOX TO TAKE THE PHOTO. MANUALS INCLUDED. UNIT HAS THE GPIB OPTION (A $325.00 OPTION). THIS IS A VERY NICE COMPACT POWER SUPPLY.
Voltage (0.01% of Vmax + 2 mV)
Current (0.01% of Imax + 1 mA)
Voltage (0.01% of Vmax + 2 mV)
Current (0.01% of Imax + 5 mA)
Voltage (1% of Vmax + 1 count)
Current (1% of Imax + 1 count)
1. Specifications indicate typical performance at 25° C +/- 5° C, nominal line input of 120 VAC.
2. For input voltage variation over the AC input voltage range, with constant rated load.
3. For 0-100% load variation, with constant nominal line voltage.
4. Maximum drift over 8 hours with constant line, load and temperature, after 60 minutes warm-up.
5. Change in output per ° C change in ambient temperature, with constant line and load.
6. Apply accuracy specifications according to the following voltage program accuracy example:
Set a model 15-20 power supply to 10 volts. The expected result will be within the range of
10 volts +/- 60 mV +/- 0.1% of the set voltage of 10 volts.
Single unit: 104-127 VAC at 6 Arms; Dual unit: 104-127 VAC at 12 Arms, 47-63 Hz
Voltage Mode Transient Response Time
<500 µs recovery to 50 mV band for ±50% load change in the range of 25% to 100% of the rated load
0 to 30° C for full rated output. Above 30°C, derate output linearly to zero at 70° C
Front Panel Voltage and Current Control
10-turn voltage and 1-turn current potentiometers (10-turn current optional)
Front Panel Voltage Control Resolution
5.2 x 4.2 x 11.7” (132 x 109.2 x 297 mm)
2-25 VDC high. <0.8 VDC low. User-selectable.
Remote analog Programming Option
0-10 VDC for 0-100% of rated voltage or current ±1.0%, 0-10 kΩ for 0-100% of rated voltage or current ±1.0%
0-10 VDC for 0-100% or rated voltage or current ±1.0%
Over Voltage Protection Trip Range
CE-marked units meet: EN61010-1, EN61000-6-2 and EN61000-6-4; CSA C/US certified to UL61010-1B and CSA C22.2 No 1010.1; Meets USA EMC standard: FCC, part 15B, class A; Meets Canadian EMC standard: ICES-001, Class A.
