Locknetics 510 power supply access control

What is for sale: Locknetics 510 power supply access control

---

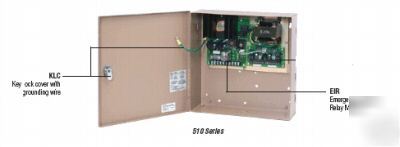

LOCKNETICS 510 KLC EIR POWER SUPPLY
The 510 Series Power Supply offers the ultimate in versatility. Output voltage is field selectable with an on board switch: 3amp @ 12VDC and 2amp @ 24VDC. Like each of the of Locknetics power supplies the 510 is UL listed, filtered and regulated, with a built in battery charging circuit.
The 510 Series features modular electronics which offer flexibility, ease and convenience to power electronic locking systems. Plug-in dual control modules can be added for independent control of up to six zones. Each dual control module (DCM) can provide control for two independent zones. Up to three dual control modules can fit into a control module rack (CMR).
A plug-in adjustable relock time delay module (TDM) is available with a 0 to 30 second delay. It plugs into each zone of the dual control module to provide up to six TDM’s in each power supply. An emergency interface relay (EIR) module plugs into the main circuit board to provide interface with approved fire or other emergency systems. A signal from the emergency systems will automatically and instantly unlock all locks connected to the power supply.
All of the modules – DCM, CMR, TDM, and EIR – can be easily configured in the factory or in the field. In some installations, it may be required by code that the locking device (fail safe type) be immediately unlocked upon actuation of an approved fire emergency system. Whenever this installation is required use the Emergency Interface Relay (EIR) and check with the authority having jurisdiction for approval of the proposed system hookup.
Standby battery kits (SBP2) may be added to the 510 Series power supply at the factory or in the field. See above chart for recommended battery power to meet specific job requirements. A key lock cover is available as a factory installed option.
