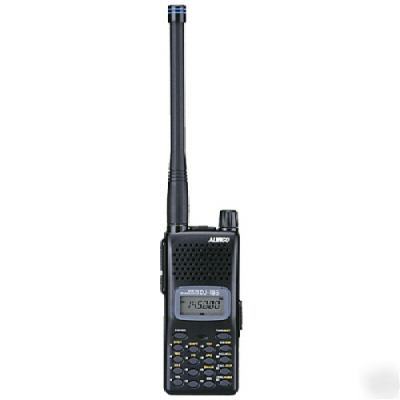

Alinco dj-195E vhf fm handheld transceiver

What is for sale: Alinco dj-195E vhf fm handheld transceiver

---

* 5W output with a standard battery
* 13.8VDC direct input with battery charge feature
* 39 CTCSS tone squelch functions
* 104 DCS digital code squelch functions
* Direct frequency entry from the DTMF keypad
* SMeter with easy to read display
* 9 auto dial memories easily accessed from the DTMF keypad with redial function
* Radio-to-radio cloning function
* Theft alarm emits a tone when disconnected from the power
* Mosquito repel sound function
* TOT function can be set to duty cycle most accommodating to the user's requirements
* Naming memory channels function
* 1000, 1450, 1750 and 2100 Hz tone burst function
* Equipped with a high performance antenna (BNC connector)
* Frequency range: 144.000 - 145.995MHz (135.000 - 173.995MHz optional)
* Frequency step: 5, 10, 12.5, 15, 20, 25 and 30kHz
* Memory channel: 40 channels + 1 call channel
* Antenna impedance: 50Ω unbalanced
* Frequency stability: ± 5ppm
* Supply voltage: 6.0 - 16.0VDC
* Full power (5W) current consumption: 1.2A
* Rating power (280mW) current consumption: 200mA
* Squelch reception current consumption: 50mA
* Battery save on current consumption: 20mA
* Temperature range: from -10°C to +60°C
* Dimension with EBP-48N battery: 56(W) x 124(H) x 40(D) mm
* Weight with EBP-48N battery: 375g
* Subaudible tones: 39 CTCSS tones and 104 DCS codes
* Maximum RF power output: 5W (with EBP-48N battery or 13.8VDC power source)
* Modulation: variable reactance
* Spurious emission: -60dB or less
* System: double-conversion superheterodyne
* Sensitivity (144.000 - 145.995MHz): -14.0dBµ (0.20µV) or less
* Sensitivity (135.000 - 173.995MHz): -12.0dBµ (0.25µV) or less
* 1st intermediate frequency: 21.7MHz
* 2nd intermediate frequency: 450kHz
* Sensitivity at -6dB: 12kHz or more
* Sensitivity at -60dB: 26kHz or less
* Maximum audio output: 280mW
* Audio output (8Ω impedance): 200mW with less than 10% distortion
* EBP-48N Ni-Cd battery pack (9.6V, 700mAh)
* EDC-94 wall charger (230VAC)
* Flexible rubber high performance antenna
Mobile Cigarette Lighter Adapter with Active Noise Filter
Cable for External DC Power Source
Speaker Microphone with Volume Control
Earpiece Headset with VOX and PTT
Soft Case for use with EBP-48N Battery
Download this PDF Instruction Manual for more information.
