#hlv-h hardinge "toolmakers" precision lathe #25079

What is for sale: #hlv-h hardinge "toolmakers" precision lathe #25079

---

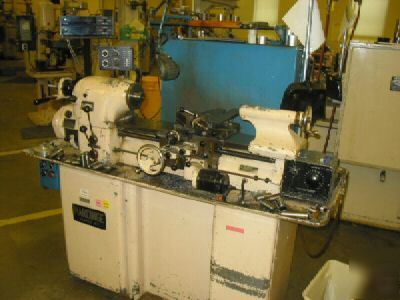

#HLV-H HARDINGE "TOOLMAKERS" PRECISION LATHE
Serial No HLV-H-1532, Model HLV-H
Threading Capabilities Thru Precision Gear Box
Power Electric Feed to Carriage
Infinitely Variable Spindle Speed Headstock
Quick Collet Closer (Lever Type)
Dovetail Bed w/Hardened & Ground Steel Ways
Live Center Tailstock - Coolant System
Hole Thru Spindle...................... 1.25"
Collet Capacity (#5C Hardinge), Round.. 1.0625"
Collet Capacity (#5C Hardinge), Hexagon .875"
Collet Capacity (#5C Hardinge), Square. .750"
Swing Over Bed Ways, Rated............. 11"
Swing Over Carriage.................... 9"
Swing Over Cross-Slide................. 6"
Distance Between Centers............... 18"
Compound Slide Travel.................. 3"
Tailstock Spindle Taper................ #2 MT
Tailstock Spindle Diameter............. 1.375"
Tailstock Spindle Travel............... 3.75"
Spindle Speeds, Variable Range......... 125 to 3000 RPM
Carriage Longitudinal Feeds (Z-Axis)... 5/16 to 7 IPM
Cross-Slide Cross Feeds (X-Axis)....... 3/16 to 4 IPM
(27) Thread Changes, Range............. 11 to 108 TPI
Spindle Motor, Horsepower.............. 1.5 HP
Weight, Approximately.................. 1700 LBS
NOTE: We Have Available At Extra Cost A S5C Haas
Programmable Indexing Attachment (Stock #25156)
PRICE: F.O.B. OUR WAREHOUSE........... $5,950.00
All machines/equipment subject to prior sale.
