Dual transformer pair 1-triple & 1-single--175#

What is for sale: Dual transformer pair 1-triple & 1-single--175#

---

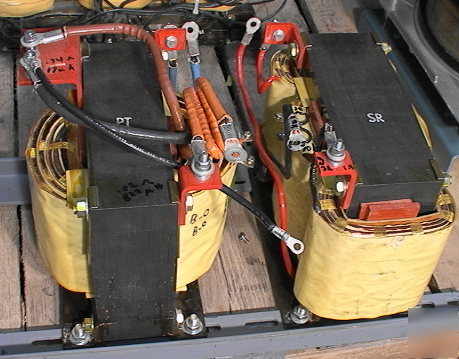

Dual Transformer Pair 1-triple & 1-single-175#.
We don't know what these are for but they are on a common frame and were connected together. We did take a few measurements with an LRC meter.
The small leads in the center measured 630 ohms (ac at 100 hertz) and 30 Henrys so it is a lot of turns of small wire. The two large wire pairs were connected in parallel. Separately them measure about 1.4 ohms and 32- 40 mH each.
The small leads on the single transformer measured .7 ohms and 4.8 mH. The big leads on the left measured .74 ohms and 17 mH. The pair of big leads on right were connected in parallel and measured .02 ohms-822 uH.
Additional similar items may be listed separately or available on request.
Might be just what you need for your unusual transformer application.
Condition looks like new but we can't find a placard and have no idea what the voltage or current ratings are.
