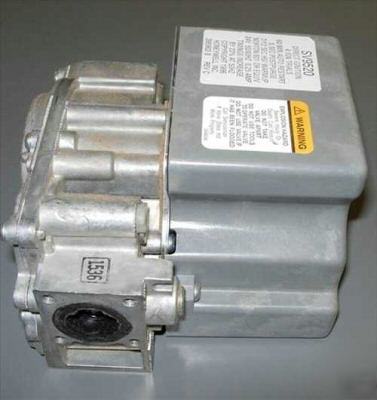

Honeywell 1/2" ignition smart valve control SV9520H8042


What is for sale: Honeywell 1/2" ignition smart valve control SV9520H8042

Honeywell 1/2" x 1/2" NPT Direct Hot Surface Ignition SmartValve™ Control
These units sell for over $170.00 street price and we are selling it at only $75.00 don't miss this one!
1/2 inch NPT x 1/2 inch NPT Direct Hot Surface Ignition SmartValve™ Control with fast-slow opening and 3.2 in. wc pressure regulator setting
The SV9520 SmartValve™ System Controls combine gas flow control and electronic direct main burner ignition sequencing functions into a single unit. The ignition source is 120V hot surface igniter lighting the main burner flame. Provides all gas ignition safety functions by controlling gas flow, ignition source, and a 120 Vac combustion air blower. The control also monitors the appliance airflow proving switch circuit and limit string to assure proper appliance operation. The SmartValve™ System Controls provide prepurge, postpurge and timed trial for ignition with multiple ignition trials and auto reset from lockout. Diagnostic LED indicates system status.
* The control communicates directly with the ST9160 Electronic Fan Timer (EFT) in typical forced warm air furnace applications
* It will also interface with the 208907 Terminal Board, providing compatibility with power-stealing thermostats. Or, it directly interfaces with the appropriate power supplies and a system thermostat for additional appliance applications.
* When controlled directly by a thermostat, the control does not provide a postpurge function, as power to the control is removed when the thermostat call for heat ends.
* This system is suitable for a wide range of fan-assisted combustion, gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances.
Please click here for Product Specifications from
10(ten) Business days(Saturdays, Sundays and holidays are Excluded). No Exceptions.
Summary of Our Selling Policies
Sellers are not responsible for service transit time. This information is provided by the carrier and excludes weekends and holidays. Note that transit times may vary, particularly during peak periods.
ALL SALES ARE FINAL. NO EXCEPTIONS!
NO REFUNDS if the size does not fit.
Please note that there can be slight color differences due to camera flash and your individual computer monitor.

Contact: caitlin_contreras@parts-recycling.com (Caitlin Contreras) (email hidden).
